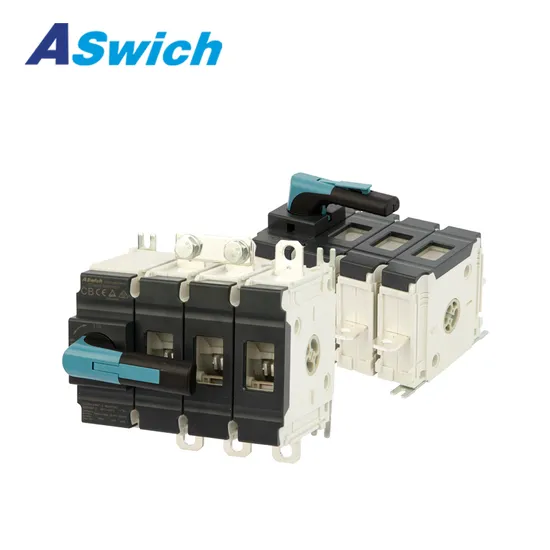

DC Isolator Electrical Power Supply Isolating Switch 160A 1500V

Product Description

The produced energy can be used to power a local load (off-grid systems) or it can be fed into the public power-grid (grid-connected systems). As the PV generator output is direct DC and most loads and public grids generally accept only AC, PV inverters are used to perform the necessary DC-AC conversion. As the current and voltage output of a PV generator are not constant, the inverter must also adjust to the changes at its input circuit so that the maximum possible power is drawn from the generator. By way of an example, the amount of light available naturally contributes to the PV cells' current output, whereas the voltage output is inversely affected by the cell temperature. Between the PV panels and the AC grid are the so-called balance-of-system (BOS) components. These include the inverter, the interconnecting cables, wires, over-current and surge protection, earthing equipment and a means for switching and disconnecting different parts of the circuit. For example, the international standard IEC 60364-7-712 requires a means for disconnecting the inverter from both sides. Moreover, the standard specifically demands a switch disconnector to be provided on the DC side of the PV inverter. This allows the disconnection and reliable isolation of the inverter from all DC sources. Additional switch equipment can be used for disconnecting parts of the PV array, for system earthing or for switching possible energy-storage circuits. Advantages High breaking performance A glass fibre reinforced polyester break chamber with an arc extinguishing system provides a patented safety disconnection system offering rapid extinguishing of the electric arc up to 1500 VDC and current interruption up to 800 A.
Remotely operated product ASWICH PV are intended for use in photovoltaic installations and solar inverters. They can be remotely controlled via volt-free contacts, from either an external automatic controller or a switch.
Manual emergency operation In addition to its motorised operation, the ASWICH PV also includes a manual operation facility, enabling the switch position to be changed directly on the device if required.

Technical data

Model	EHD-315
Poles	2P 3P 4P
Standard	UL98B,IEC
Rated Current	250A,315A,400A
Rated Operational Voltage (Ue)	1000V,1500V
Mechanical Cycle	8000
Electrical Cycle	1000
Protection Degree	IP20 switch body, IP66 for enclosure
Polarity	No Polarity
Certificate	UL CB TUV

Detail
Application:
About us
FAQ Q: If I'm interested in your DC Isolator when I can receive your quotation and detail information after send the enquiry? A:All your enquiry will be replied in 24hours. Q:Your DC Isolator seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others! A: Our DC Isolator is IP66 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way. Q:Can I get a sample before the order because I really don't how is your DC Isolator quality? A:Of course!We also think sample order is the best way to build the trust. Q:How's the delivery?Because I really need them is urgently? A:For sample order 3~7days will be no problem.And for regular order we promise in 15days. Q:How's the warranty period for your DC Isolator? A:We offer 2-5 year warranty for our customer depend on different product

---
