Armored American/Canadian Canada Market UL Approved Tinned Copper Fire Resistant Cable

Product Description

Armored US/Canadian Market Fire Alarm Cable with Aluminum Flexible Metal Conduit
PRWA Series Aluminum Flexible Metal Conduit (Reduced Wall)
Description PRWA series is UL listed / recognized for full trade size. This is the series of reduced wall & lightweight Flexible Metal Conduit manufactured with aluminum strip. Completely meet with UL1 standard. When using for electrical installation, shall refer to the regulation of NEC. The size of 5/16", is especially recommended for the wire protection in limit spaces or for light fixtures. The small size and bending radius offer advantage to satisfy the wiring environment of narrow space and corners.
Product Description
Material:Aluminum (Reduced Wall)
Temperature Range : -50ºC~+200ºC
IP Rating : IP 40
Flexibility : High
RoHS Compliance : Yes
Certificate : UL, cULus, cURus

Nominal Conduit Size (mm)	Nominal Conduit Size (inch)	Part Number	ID (mm)	OD (mm)	Bending Radius (mm)	Package / Roll (ft/m)	Measurement(LxWxH mm)
	5/16	KAIZ-0001	7.92~8.60	11.94~12.95	50	100 / 30.5	320*320*150
12	3/8	KAIZ-0002	9.52~9.96	14.22~15.49	50	100 / 30.5	320*320*150
16	1/2	KAIZ-0003	15.88~16.38	21.84~23.37	75	100 / 30.5	380*380*150
21	3/4	KAIZ-0004	20.62~21.21	26.54~28.07	100	100 / 30.5	450*450*180
27	1	KAIZ-0005	25.40~26.42	33.02~35.05	125	100 / 30.5	550*550*220
35	1 - 1/4	KAIZ-0006	31.75~33.02	39.37~41.40	160	50 / 15.3	500*500*180
41	1 - 1/2	KAIZ-0007	38.10~40.01	46.99~49.53	190	50 / 15.3	580*580*200
53	2	KAIZ-0008	50.80~52.83	59.69~62.23	255	25 / 7.6	550*550*200
63	2 - 1/2	KAIZ-0009	> 63.5	72.64~77.72	320	25 / 7.6	700*700*200
78	3	KAIZ-0010	> 76.2	85.34~90.42	380	25 / 7.6	750*750*250
91	3-1/2	KAIZ-0011	> 88.9	98.04~103.12	445	25/7.6	900*900*300
103	4	KAIZ-0012	> 101.6	110.74~115.82	510	25 / 7.6	900*900*300

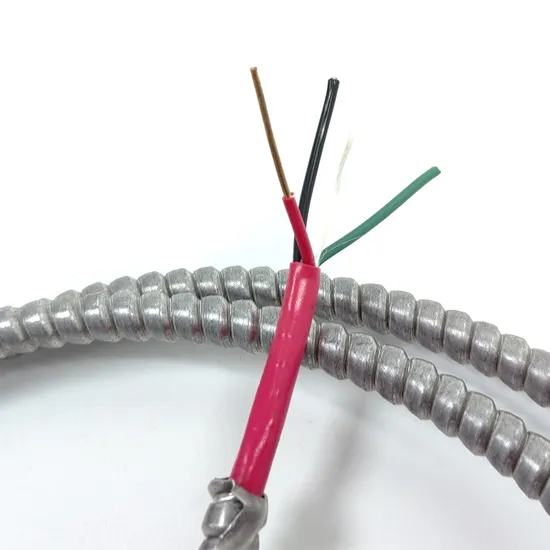

CABLE PICTURE

QUALITY POLICY:
Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following: Maintain the ISO 9001 Quality Management System Continual review and improvement of the effectiveness of the Quality Management System Provide all necessary resources to manufacture quality cable Create a safe and technologically advanced working environment Respect for the environment in which we operate Training and communication to keep employees informed and involved Every employee has the responsibility to ensure that these requirements are met.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our clients, from home or abroad, are warmly welcome to visit us!

---
