US$8,800.00-9,600.00
|
1 set
(MOQ)
|
Basic Info.
Type
Universal Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Name
Universal Milling Machine
Table Longitudinal Travel(Manual/Auto)
720mm
Table Cross Travel (Manual/Auto)
300mm
Table Vertical Travel(Manual/Auto)
400mm
Swivel Angle of Swivel Head
360 Degree
Vertical Spindle Speed
45-1660rpm
Horizontal Spindle Speed
35-1500rpm
Transport Package
Plyw/Case
Specification
1730X1760X1700MM
Production Capacity
100 Pieces/Month
Product Description

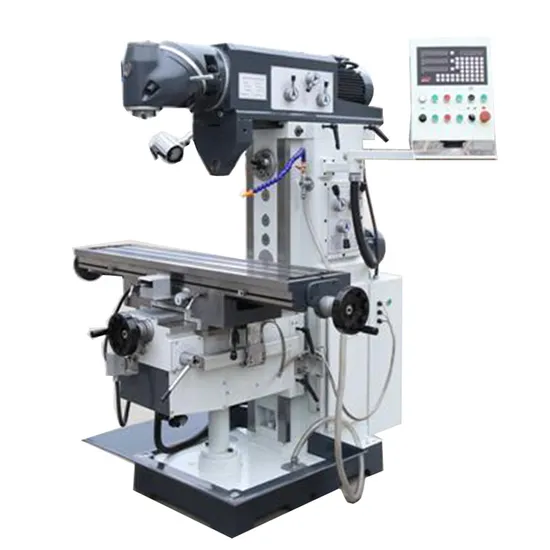

Knee type horizontal/vertical milling head metal universal milling machine XL6430/XQ6432
Product Parameters
Universal milling machine:
| Specifications | Unit | XL6430
XQ6432 | XL6430A
XQ6432A | XL6430B
XQ6432B | XL6430C
XQ6432C |
| Table size | mm | 1270*300
1270X320 | 1370*300
1370X320 | 1270*300 | 1370*300
1370X320 |
| T-slots(NO./width/pitch) | mm | 3*14*80 |
| Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 |
| Spindle taper | - | 7:24 ISO40 |
| Max rotary angle of table | | - |
| Distance between spindle center line and table surface | mm | 75-475 |
| Distance between spindle nose and table surface | mm | 260-660 |
| Distance from horizontal spindle center line to arm surface | mm | 180 |
| Spindle speed range | r.p.m | (V)11 steps 45-1660; (H)12 steps 35-1500 |
| Arm travel | mm | 400 |
| Table feed(X/Y/Z) | mm/min | X Y:30-830 Z: 23-625 |
| Table rapid speed | | 1335/1335/1000 |
| Main motor power | Kw | 3 |
| Torque of X/Y/Z axis AC servo motor | Nm | 10 |
| Cooling pump motor power | W | 40 |
| Flow of cooling pump | L/m | 12 |
| Overall size | mm | 1720*1680*1860 | 1820*1680*1860 | 1720*1680*1860 | 1820*1680*1860 |
| Net weight | Kg | 1850 | 1900 | 1900 | 1950 |
Standard Accessories:
| Name | Detail | Qua. |
| Taper shank sets milling cutter arbor | 7:24 ISO40-Φ27 | 1 |
| Draw bar | M16(vertical, horizontal) | 2 |
| Allen Wrench | 5,6,10,12 | 1 |
| Double-ended wrench | 17*19 | 1 |
| Double-ended wrench | 22*24 | 1 |
| Double-ended wrench | 32*36 | 1 |
| Nut | M16 | 2 |
| Washer | 16 | 2 |
| Operation manual | | 1 |
| Certification | | 1 |
| Packing list | | 1 |
Optional accessories:
| NO. | Name |
| 1 | Universal dividing head 100 |
| 2 | Rotary table 250 |
| 3 | Collect holder and collets(ISO40 milling chuck 15pcs) |
| 4 | CE Schneider electric |
| 5 | Aluminum hangarm |
| 6 | Spindle cover |
Detailed Photos
Universal milling machine more photos
After Sales Service
We also would like to let you know our warranty about our X6436 Chinese precision Universal swivel head milling machine as following:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
>>
