Henan Mine Light Level Fully Self-Propelled for Installation of Mechanisms Scissor Lift Lifting Platform

Product Description

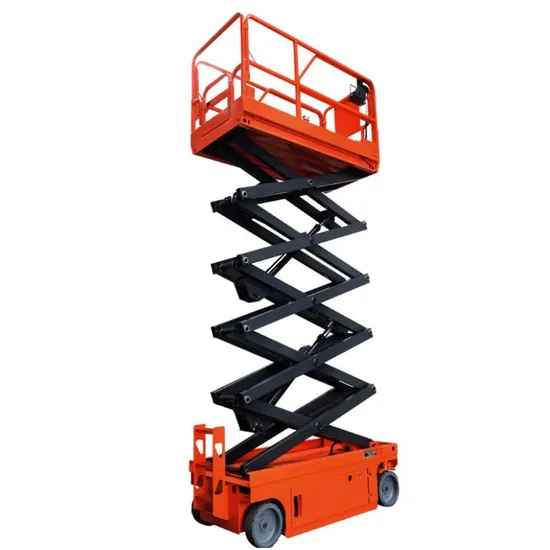

Henan Mine light Level Fully Self-Propelled Scissor Lift Lifting Platform Lifting Table for Installation of Mechanisms
Product Description
Electric lifting platform car is a multi-functional lifting and unloading machinery equipment, electric lifting platform lifting system, is driven by hydraulic pressure. Shear fork mechanical mechanism, the lifting platform has high stability, wide operating platform and high carrying capacity, so that the scope of high-altitude operation is larger, and suitable for many people to work at the same time. It makes high-altitude work more efficient and safer
Company Profile
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Product Parameters

models items 07series 08series 12series 14series GTJZ 0807HD 0808HD 1008HD 1012HD 1212HD 1412HD 1414HD 1614HD capacity 230kg 380kg 230kg 450kg 320kg 320kg 450kg 200kg Capacity-extension deck 113kg 113kg 113kg 113kg 113kg 113kg 113kg 113kg Max occupancy 2 2 2 2 2 2 2 2 Max working height-A 7.80m 8.20m 10.10m 10.10m 12.00m 13.80m 13.50m 15.70m Max platform height-B 5.80m 6.20m 8.10m 8.10m 10.00m 11.80m 11.50m 13.70m Length-C 1.86m 2.42m 2.42m 2.42m 2.42m 2.42m 2.79m 2.79m Width-D 0.76m 0.83m 0.83m 1.17m 1.17m 1.17m 1.27m 1.27m Height(raillings unfolded) 2.19m 2.24m 2.37m 2.36m 2.49m 2.62m 2.49m 2.62m Height-E(railling folded) 1.85m 1.94m 2.07m 1.80m 1.93m 2.06m 1.93m 2.06m Platform size (L×w-F) 1.67m× 0.74m 2.27m× 0.83m 2.27m× 0.83m 2.27m× 1.14m 2.27m× 1.14m 2.27m× 1.14m 2.64m× 1.14m 2.64m× 1.14 m Extension deck size -G 0.90m 0.90m 0.90m 0.90m 0.90m 0.90m 0.90m 0.90m Ground clearance (stowed) 0.10m 0.10m 0.10m 0.10m 0.10m 0.10m 0.10m 0.10m Ground clearance (elevated) 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m wheelbase 1.40m 1.87m 1.87m 1.87m 1.87m 1.87m 2.24m 2.24m Min turning radius (inside) 0m 0m 0m 0m 0m 0m 0m 0m Min turning radius (outside) 1.60m 2.25m 2.25m 2.23m 2.23m 2.23m 2.25m 2.25m Lifting/ driving motor 24V/3.0Kw 24V/3.3Kw 24V/3.3Kw 24V/3.3Kw 24V/3.3Kw 24V/4.5Kw 24V/4.5Kw 24V/4.5Kw Driving speed (stowed) 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h Driving speed (elevated) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h Lifting/ lowering speed 18/22sec 24/34sec 28/40sec 28/40sec 45/36sec 50/38sec 60/45sec 80/60sec batter 4×6V/ 225Ah 4×6V/ 225Ah 4×6V/ 225Ah 4×6V/ 225Ah 4×6V/ 240Ah 4×6V/ 260Ah 4×12V/ 300Ah 4×12V/ 300Ah charger 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A Max gradeability 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Max tilt 3°/1.5° 3°/2° 3°/1.5° 3°/2° 3°/2° 3°/1.5° 3°/2° 3°/1.5° tires Φ323× 100mm Φ381× 127mm Φ381× 127mm Φ381× 127mm Φ381× 127mm Φ381× 127mm Φ381× 127mm Φ381× 127mm Weight 1260kg 1980kg 2100kg 2230kg 2480kg 3100kg 3020kg 3180k

---
