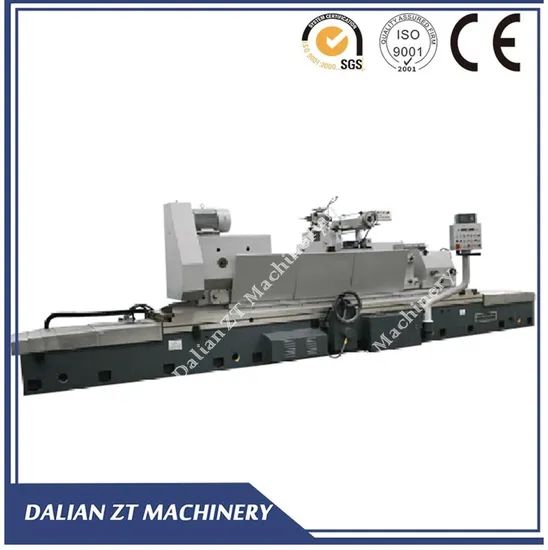

Large Conventional Cylindrical Grinding Grinder Machine M1363X3000

Product Description

The Universal Cylindrical Grinding Machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tooling or repair workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system or by handwheeel. The infeed of wheelhead is carried out by hydraulic automatic periodic feed and also by handwheel. The rapid approach and withdrawal of wheelhead retracting of tailstock center lubrication of slideway and lead-screw are all hydraulically controlled.

Item	M1363
OD grinding diameter	Φ50-630mm (with/without steady rest)
ID grinding diameter	---
Center height	335
Workpiece speed	8-200rpm
Roughness	Ra0.32
Wheel speed	35m/s
Max. Workpiece weight	2000/3000kg
Grinding length External	3000,4000,5000mm
Width of grinding wheel	75mm
External wheel size	¢900x75x¢305mm/¢750x75x¢305mm
Work head and tailstock center	Metric 80#
Total motor power	34.52kW

Standard accessories:

Oil tankl
Coolant tank;
Wheel dresser;
Wheel with flange;
Wheel balancing arbor;
Driving dog;
Parallel wedge;
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
