Mcm250 Mission Magnum 22451-1 and 648414308 Tungsten Carbide Mechanical Seal

Product Description

2.5" mechanical seals, shaft sleeves and packings for 250 series centrifugal pumps in stock in Shangahi China and Texas USA!!!
3.5" mechanical seals, shaft sleeves for XP and XL centrifugal pumps in stock in Shanghai China and Texas USA!!!
For any parts, pls. contact Ms. Lucy Liu.
Quick delivery and OEM QUALITY!
OFF THE SHELF AVAILABILITY
https://trisun.en.made-in-china.com/product/hsNQqoIVSDkC/China-Mission-XP-Pump-Mechanical-Seal-Mcm-XL-Centrifugal-Pump-Seal.html
https://trisun.en.made-in-china.com/product/NBnmvKTEYcpk/China-Durco-Mark-2-Group-Stamped-Mechanical-Seal-with-Set-Collar.html
https://trisun.en.made-in-china.com/product/xvQnApYTzWru/China-Cartridge-Seals-and-Metal-Bellows-Seal-for-Goulds-Durco-Pumps.html

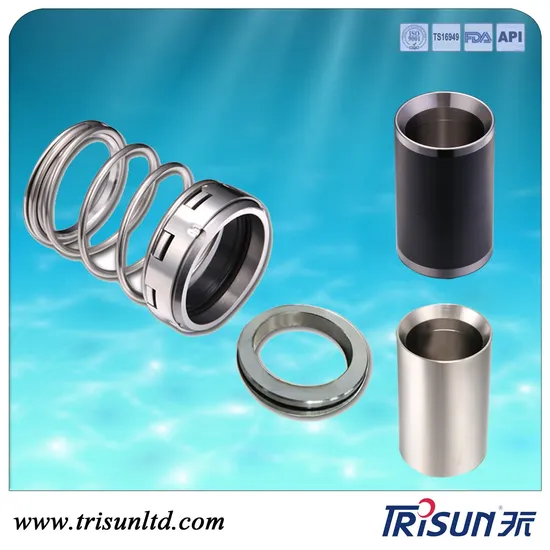

Type 1 tungsten carbide seal and shaft sleeve are used for mud centrifugal pumps and ANSI pumps such as mcm®, mission® magnum, halco®, mattco, harrisburg®, Demco®, DL, Kemtron®, Marindco®, national oilwell, mission®2500 supreme, spd mud hog®, SDS mud hog®, SiteTec, premium 2500. Curflo®, Forum® and other major brand pumps.
Type 1-2.5" seal is identical to Mission pump seal NOV# 22451-1, 648414308 and T1-3.5" is identical to Mission Magnum XP pump seal NOV#24306, 658416102.
Trisun double cartridge seal is identical to Mission pump seal KCD Olympia double cartridge mechanical seal. .
Type 1 seal faces can be added diamond coating and has longer life time. We are the only one China seal manufacturer who can produce diamond coating on seals.
Dimensions: 3.5inch, 2.5 inch, 1.875 inch and 1.5 inch
Material: Tungsten Carbide VS Tungsten Carbide, Viton, SS316 machining parts
Type 1 seals, same as NOV #22451-1, fit the following pumps too:
MISSION MAGNUM 1 and XL MUD PUMPS
NOV HALCO 2500 SUPREME MUD PUMPS
SPD 2.5″ MUD HOG CENTRIFUGAL PUMPS
Its sleeves are made of stainless steel and has two choices:
stainless steel and stainless steel with ceramic coating.
The sleeves with ceramic coating have longer service time and very good quality.
In harsh conditions, these pumps use cartridge seals and we also produce cartridge seals.
We also have other pump parts for MCM pumps, such as housing, impeller, bearings, oil seals etc.
If you need more information about seals and sleeve, pls. contact me directly.

Description	Maker's Ref.
FLUID END GASKET KIT	H10399-46-1A
MECHANICAL SEAL	H22451-1A
Sleeve Shaft	H20613-21G-7A
Packing 3 Rings Seal	H2537-24A
BOLT GLAND ASSEMBLY	H3701A
SEAL, IMPELLER	H19110-72
SEAL, SLEEVE SHAFT	H7496-236
BEARING INBOARD	H20615-1
BEARING OUTBOARD	H20616-1
SEAL, OUTBOARD BEARING COVER	H7496-26
OIL SEAL, OUTBOARD BEARING COVER	H20619-02
LOCK WASHER BEARING	H6124-4
LOCK NUT BEARING	H6123-4
Casing 3x2x13	19203-01-30A
Impeller 3x2x13	19204-13-30
Stuffing box, mech seal	22223-01-30
Housing, O.B. bearing	20624-01-01
Impeller 6X5X14	19121-XX-30
Casing 6X5X14(snail housing)	19123-01-30A

---
