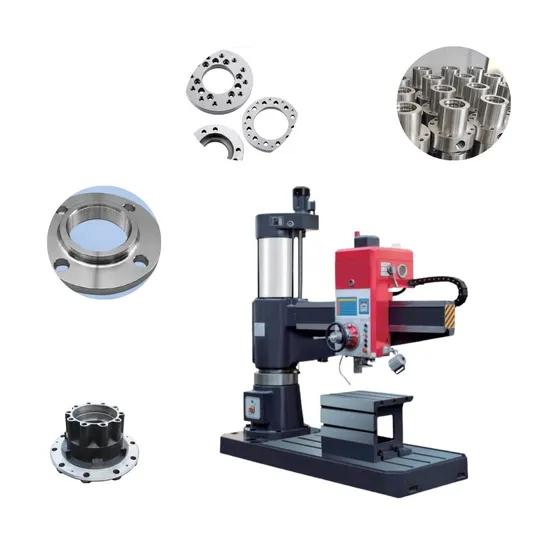

Intelligent High Efficiency Radial Drilling Machine Zwb3050X16

Product Description

Features:
The main gearbox has nearly 20 gears less than the traditional hydraulic variable-speed rocker arm drill, canceling the variable-speed cylinder, with a simpler structure, fewer faults, easy maintenance and low noise.
The main motor and feed motor both adopt permanent magnet high efficiency energy saving motor, energy saving more than 35%.
Gear module is enlarged, drilling large holes is more assured.
Independent feed motor (permanent magnet energy efficient) upgrades the original 16 fixed feed amount to stepless speed regulation.
Upgrade the original 16-speed fixed speed to 2-speed stepless speed regulation.

Model No.	ZWB3050X16
Moving
Max,drilling capacity	50mm
Max,tapping capacity	M30
Distance spindle axis to column surface	350-1600mm
Max.spindle travel	Manual 135mm Automatic 115mm
Spindle
Spindle taper	MT5
Diameter of column	350mm
Spindle speed	20-200,200-2000r/min
Dimension of worktable	630x500x500mm
Dimension of base	2400x1000x200mm
Max,distance spindle nose to base	320-1220mm
Feed
Max.torque	400N·m
Permissible max,feed resisting force	16000N
Rocker arm lifting speed	1.2m/min
Other
Main motor power	Max 4kw
Rocker arm lifting motor power	Max 11kw
Oil pump motor power	Max 750w
Coolant pump motor power	125w
Feed motor power	90w
Feed speed rate	13-127mm/min
N.W./G.W.	3500/3800kg
Max.extemal dimension	2677x1000x2650mm
Packing dimension	2600x1120x2600mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
