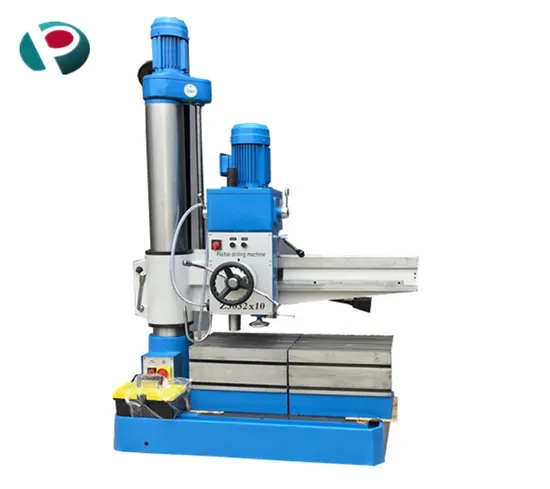

Factory Direct Sale Radial Arm Drilling Machine Z3032/Z3040/Z3050/Z3063 Drilling Tapping Machine

Product Description

Product Parameters

Main Parameters	Z3040×10 Single Column	Z3050×16 Radial Drilling Machine
Maximum Drilling Diameter (mm)	35/40 (steel/casting)	48/50 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) (mm)	300-880	360-1600
Distance from spindle end to base table (minimum-maximum) (mm)	230-1120	300-1150
Spindle travel (mm)	220	220
Spindle taper	MT.4	MT.5
Spindle speed stages	12 Level	6 Level
Spindle speed range (r/min)	34-1220	78.135.240.350.590.1100

1.Adopting advanced structure, new technology, new process, perfect performance, simple structure, flexible operation, reliable work, high precision, long service life, easy maintenance, widely used in drilling, reaming, reaming and tapping threads in machining.
2.Z3050x16/1 type rocker arm drilling machine, the machine speed and feed by a wide range of variable speed range, can be motorized, manual and micro-manipulation, can be at any time easy to turn on or cut off the feed. The feed safety mechanism is safe and reliable, and the clamping of each part is convenient and reliable. The spindle box has a small displacement error when unclamping, the variable speed control mechanism is concentrated on the spindle box, which is easy to operate and change the speed, and the hydraulic preselection of spindle speed and feed is quick, accurate and sensitive. Detailed Photos
