Fully Automatic High Efficiency Airline Food Packaging Aluminum Foil Container Production Line

Product Description

Our company official website:fineness.en.made-in-china.com
Item Technical Data Item Technical Data

Model	AF-63T	Slide Stroke	120-260mm
Max.Pressure	630KN	Mould Loading Height	310-450mm
Max.Material Width	650mm	Press Power	5.5kw-7.5kw
Max.Material Diameter	600mm	Working Table(L*W)	870*520mm/1000*800mm
Speed	40-70pcs/min	Mould Adjustable Height	70mm
Feeding Length	20-999mm	Press Weight	5500-6300kg
Feeding Machine Power	1.4kw	Press Dimension	2300*1600*3300mm
Feeding Machine Weight	1000kg	Voltage	380V/50Hz

Usage:
Ideal machine is used to make aluminum foil container to meeting respective usage and function, such us aluminum foil tray, aluminum foil plate, aluminum foil container cover, barbecue food tray, aluminum airline container, aluminum disposable plate ,egg tart containers, turkey dish, foil oven mat etc.
Feature:
-Feeding, lubricate, punching, scrap, foil container collecting automatically.
-Very reliable as the controlling system adopts Siemens CPU 224 programmable logic controller (PLC) foraluminum foil plate & tray machines.
-Machine is integration of Gas & Electrical, centralized control, so foil feeding length, speed and other parameters are easy to set.
-With Auto counting stacker, aluminum foil container could count and stacked automatically.
-Manual setting of the aluminum foils feeding length from 20 to 999mm by you.
-With automatic lubrication system and aluminium foil material could lubricate automatically.
The features are feeding accuracy, coating even, saving material, high accuracy, neat appearance, small size, easy to install, operate, maintain, little noise, as a result, it is the ideal equipment for aluminum food containers & hardware products and so on.
Optional Consist for the Food Container Machine

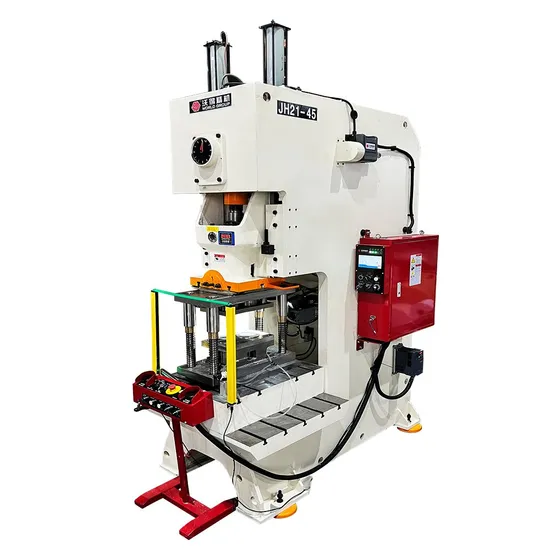

1. High efficiency press /punching machine for aluminum foil container punching
2. Automatic oil lubrication feeding machine for feeding foil
3. Air compressor to supply air for mould and container blowing
4. Manual forklift to load /unload the foil material and mould
5. Foil wastage & scrap collecting system to keep clean and stacker machine working well
6. Aluminum foil container & dish auto stacker machine to collect the products automatically.
7. Ideal receiving table for containers, easy to pick up by fewer operators
I Each machine consists of:
-1 Unit Press / Punching Machine
-1 Unit Aluminum Foil Feeding Machine
-1 Unit Conveyer Belt
-1 Unit Receiving Table
-1 Unit Automatic Scrap Collecting System
-1 Unit Air Compressor System
-1 Unit Aluminum Foil Test Roll
-1 Unite Manual Operation Lifer-Loading/Unloading Material and Mould
-1 Unit Digital PLC Computerized Panel Control
Rrmark: Mould not inclusive in, Please provide the mould dimension for us, I can supply the idea and suitable aluminum container production online machine.
II: Function feature:
-The machine employ CPU216 type of Siemens-PLC as control system, Safe and reliable. Feeding length and production speed and other parameters simply setting, Gas/electrical integration, centralized control. Full Automatic production, only need people collect products.
-working of feeding, stamping, waste collection, products send out from mould for automation
-Precision machine employ steel metal by welding, inverter, dry of friction clutch, rigid overload, insurance has high Precision and best reliability, etc.
III: Service:
-We supply of best after service, guarantee for 2 year, free training in our factory.
We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc. we have passed ISO9001:2000, Haccp, AAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines passed CE.With advanced equipments, superior quality administers and toping working team, we can offer our customers high quality products and the finest services. We are looking forward to establishing long-term business relations with clients
If you have another question, pls feel free to contact us as below:

---
