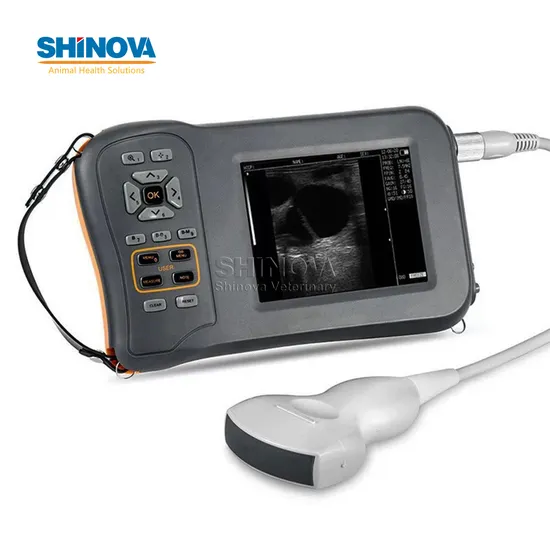

Portable Veterinary Ultrasound Handheld Ultrasound Pet Ultrasound Machine Sonoscan A6V

Product Description

The versatile ultrasound machine for large animal scanning
Model: SonoScan A6V
Thanks to six(6) different probes , I.F.R™ introducer and I-Scan® video glasses, SonoScan A6V can perform all veterinarian applications and even more easily. SonoScan A6V, featuring premium image quality, considerate design for comfortable, fast and reliable detection of pregnancy and gynecological diagnosis in difficult field conditions on a daily basis.
Features:
We're the only one in market, because of :32 digital channels and 128 elements probeVideo output, support I-Scan® video glasses eases your job and gets you focused (optional)I.F.R™ introducer engineered to lessen fatigue and stress by allowing arm-free scanning, use in a variety of reproductive diagnostic procedures.( optional, compatible with the Rectal convex and Rectal Linear transducers) Advance Features:Only weight 0.6 kg;Excellent imaging quality and ergonomic design;5.8 inch WVGA LCD monitor, wide viewing angle, LCD monitor can turn off when use I-Scan® Video Goggle4.5~5.5 hours Li-ion battery for operating;support USB for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop insider;Support leather sheath, designed to be resistant to extremely harsh farm conditions;Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angle, heart rate;
Provides versatile solutions with the greatest ease of use for all veterinarian applications - bovine , equine, swine, ovine , Lama and small ruminants:Fast and reliable detection of pregnancy from 28th day on cows, 13th on mares, 25th on sheep and goats ,18th on pigs (pregnancy control, ovarian examinations, post partum diagnosis, )Foetal sexing on cows , mares, sheep and goatsBack fat measurements on pigs, cows and sheepTeats'control, genital bull tract exams, 1*SonoScan A6V machine1* Abdominal Convex Probe C35P of 3.5 / 5MHz - (Ewes, goats, sows, cows)1* Li-ion high-power-capacity battery (5 hours/battery )1*Battery charger (AC110V~250V,50/60Hz)1*Neck strap ,hand strap1*Aluminum alloy carry case1*User guide24 months warranty for machine and 14 months warranty for probes
Specifications:

Model No.	SonoScan A6V
Applications	Special developed for Farm/Meat Production conditions:Bovine,Ovine,Equine Swine,Camels, Fish,Deer,Snake
Warrnaty	2 years warranty time under Shinova's PRO-SUPPORT service(probe:14 month after shipping)
Weight	approx 0.60kg
Size	260*120*40 (L*H*D)
Digital Channels	32(depending on different models)
Probe Element	128
Cine-Loop	360~540 ((depending on different models))
Body Mark	16 body marks
Battery	1) one(1) Lithium Ion above 240 mintues continues use;
	2) battery can be recharged separately
Viewing options	1)I-Scan® Video Goggles
	2) television or computer LED/LCD/CRT monitor
	3)LCD can turn off when using I-Scan® Goggles,so that make sure SonoScan A6V working up to 360 mintues
Monitor	5.8'' inches,TFT color LCD
Standard Probe	6.5 Mhz Linear Recall Probe(Multi-frequncy:5.5,6.5,7.5Mhz)
Optional Probes	1)3.5Mhz convex probe(Multi-frequncy:2.5,3.5,5.0Mhz)
	2)6.5Mhz HF Linear probe(Multi-frequncy:6.5,7.5,8.5 Mhz)
	3)5.0Mhz Micro-convex probe(Multi-frequncy:4.5,5.0,5.5Mhz)
	4)Rectal Convex probe
TV outport	Yes,Video PALD,NTSC for video recorder and ultrasound working station
Display Depth	≥220mm, mulit-steps
