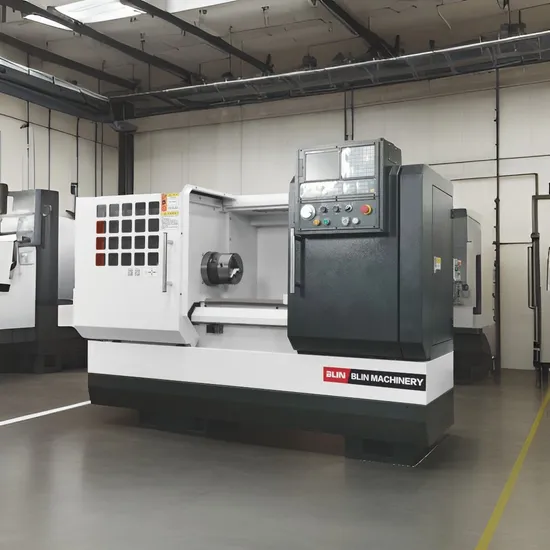

CNC Falt Bed Late Machine Tool

US$17,200.00-18,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BL-EK40
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
400mm
Max. Swing Dia. Over Slide
200mm
Guideway Width
316mm
Max. Turning Dia.
400mm
Spindle Bore
57mm
Spindle End Type
ISO702/I A2-6
Spindle Speed
140~3000(Stepless)
Spindle Motor
5.5kw
Spindle Chuck Size
8′′
Tool Turret Type
Vertical 4/Horizontal 6 Station
X Axes Travel
230mm
Z Axes Travel
590/840mm
X/Z Axes Rapid Speed
6/8m/Min
Positioning Accuracy(X/Z)
0.026/0.032mm
Repeat Positioning Accuracy(X/Z)
0.007/0.009mm
Transport Package
Plywood Case/Steel Pallet
Specification
2150*1260*1600mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Unit/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt China best high strength compound resin sand cast iron
- Aging treatment,has good vibration absorption and rigidity
- Adopt independent spindle,3000rpm high speed, especially suitable for nonferrous metal processing
- Spindle unit adopt precise angle contact ball bearing and double column cylindrical roller bearings
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Adopt independent coolant tank design
Item Specification Unit BL-TK36S BL-EK40
Capacity Guideway width mm 316
Max. swing dia. over bed mm Φ360 Φ400
Max. swing dia. over slide mm Φ180 Φ200
Max. turning dia. mm Φ320(vertical 4T tool turret);
Φ220(horizontal 6T tool turret)		 Φ400
Center distance
 mm 750/690/650
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 750/1000
Max turning length
mm 600/540/500
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 580/830
Max. workpiece weight kg 550(8'' manual chuck)
Spindle Spindle bore mm Φ57
Spindle head type / ISO702/ I A2-6(manual chuck, 8'' hydraulic chuck);
ISO702/ I A2-5(6'' hydraulic chuck)
Spindle speed rpm 140~3000(stepless)
Spindle motor kw 5.5(servo)
Chuck size / 8''
X/Z axes X axes travel mm 200/150
(vertical 4T/horizontal 6T tool turret)		 230
Z axes travel mm 610/550/510
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 590/840
X/Z axes rapid speed m/min 6/8
X,Z axes ball screw O.D./pitch mm Φ25/5,Φ40/6
Tool post Tool turret type / Vertical 4/Horizontal 6 station/gang tool
Tool shank size mm 20×20,Φ32
Tailstock Tailstock quill dia./travel mm Φ55/120(hydraulic tailstock: 100);
Φ75/150(hydraulic tailstock:130)		 Φ65/120
Tailstock quill taper / MT4#/MT5#(Φ75mm tailstock quill) MT4#
Accuracy X/Z axes positioning accuracy mm 0.026/0.032 0.026/0.032(750mm);
0.036(1000mm)
X/Z axes repeatability positioning accuracy mm 0.007/0.009 0.007/0.009(750mm);
0.011(1000mm)
Turning workpiece roundness mm 0.004
Others Total power KVA 12
N.W. kg 1700 1700(750)/2100(1000)
Overall size(L×W×H) mm 2150×1260×1600 2150×1260×1600(750mm)
2400×1260×1600(1000mm)

Main parts list:
Item Brand
Spindle bearing CHINA top-CSC/ZWZ
Ball screw bearing CHINA top-CSC
Ball screw CHINA top
Lubrication pump JAPAN-LUBE

Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock

Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6 station tool turret
- Hydraulic tailstock
