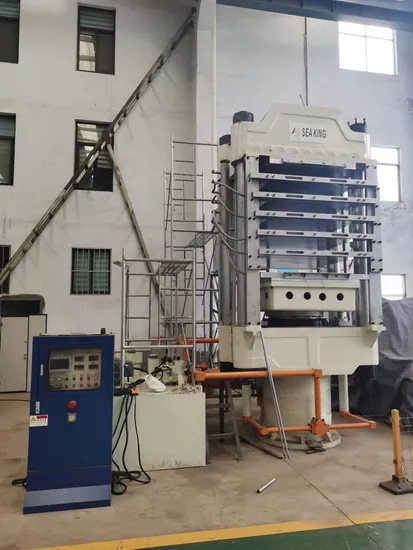

1500ton EVA Yoga Mat Foaming Machine EVA Making Machine

Product Description

Rubber vulcanizing press The machine is applicable for vulcanizing all kinds of EVA products and EVA sheet.
EVA foam products are widely used in shoe materials, plastic foam flooring, insulation materials,
luggage liner, sports protective material, diving clothing , life jackets , etc
Quick extrusion speed
High degree of automation
Five plate per time
The structure of the main machine is made from cast steel. The plunger is made from chilled cast iron with surface hardness, HR-70. the product has the superiority of less temperaturedifference, reliable insulation, and automatic pressure compensation during vulcanizing.
High Efficiency: adopted specific steel pipe to make heating-plate, large thermal conductive area, rapidly heating and cooling and its efficiency is 20% higher than the same kinds of products.
Material Saving: after grinding the shape-bored steel plate, which is smooth an polished, and 30% of mould release agent can be saved.
Steam Saving: the machine uses thermal keeping design and a thermal isolation cover is formed around the machine set, thus 20% of steam can be saved.

Technical parameters

Type	XLB-Q 1200x1200x4	XLB-Q 1400x1500x6	XLB-Q 1500x1500x6
Total Pressure (MN)	5.0	8.0	10.0
Plate Size (mm)	1200x1200	1400x1500	1500x1500
Plate Clearance (mm)	150	150	150
Piston Stroke(mm)	500	800	150
Plate Unit Pressure(Mpa)	3.4	3.8	4.5
Main Motor Power(KW)	18.5	26	33
Dimension (mm)	2400x2100x3200	2650x2400x3600	2750x2400x3600
Weight (KG)	22000	38000	48000

---
