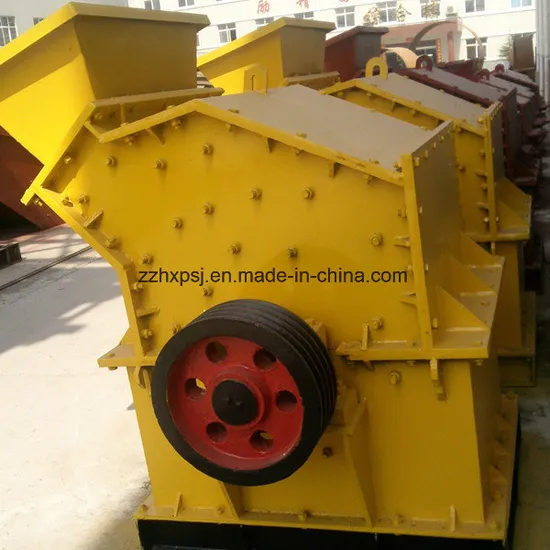

Small Fine Crusher with Grilles for Limestone

Product Description

Small Fine Crusher With Grilles For Limestone :
Impact Fine crusher is widely used for the fine crushing of many kinds of minerals such as granite, basalt, limestone, river cobble, cement clinker, quartz stone, iron ore and bauxite, and at the same time, it can also be used for producing excellent stone materials in artificial sand making, high-grade highway, railway, water conservancy, airport, building, cement, refractory and metallurgical industry.
Impact Fine Crusher Working Principle: When the tertiary impact crusher works, driven by the electromotor, the rotor rotates with high speed, and the materials go into the first crushing chamber and are crushed with the plate hammer of the rotor, and then go into the secondary crushing chamber for grinding, and finally the materials are discharged from the discharging mouth.
Impact Fine Crusher Features:
1. Novelty: It is featured by small volume, light weight, simple structure and process which make the machine easy to change the parts and convenient to move, turning the tertiary crushing to the secondary crushing. Additionally, it overcomes the weakness of traditional sandstone-making equipments which is only applicable for the soft rock(under 150MPa). 2. Unique: The third generation of new type high efficient and energy-saving sandstone-making machine has the special structure, counterattacking liner, high-chromium board hammer, which can adjust the particle size and simplify the procedure. 3. High-efficiency: The production rate of new type sand-making machine is about 40-60% higher than the traditional impact sandstone machine. 4. Power saving: The new type machine can save 50-70% power than that of traditional sandstone machine. 5. High quality: The finished sandstone with cubic shape owns high compressive strength which is applied to high-standard architecture. And product size of over 85% sandstones is less than 5mm. 6. Money-saving: The new type machine can save money 50-60% than that of traditional ones. 7. Maintenance: The maintenance ratio of new type machine is 50-60% lower than that of traditional ones. 8. Fittings: The fittings of new type machine is 50-60% less than that of traditional ones.
Impact Fine Crusher Technical Parameters:

PXJ tertiary impact crusher	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)	Rotorø×Width (mm)
Specification	800×400	800×600	800×800	1010×1010	1200 ×1200	1400 ×1400	1600 ×1600	1800 ×1800
Feed opening size(mm)	400×185	500×250	550×300	1000×350	1200 ×450	1500 ×500	1600 ×550	1800 ×800
Feeding size (mm)	<120	<180	<180	<180	<180	<190	<190	<190
Discharging size (mm)	5-10	5-10	5-10	5-10	5-10	5-10	5-10	5-10
Adjustable range of discharge opening (mm)	5-50	5-50	5-50	5-50	5-50	5-50	5-50	5-50
Cement Clinker(t/h)	10-30	18-40	20-45	25-55	50-110	50-150	85-210	125-270
Limestone(t/h)	18-45	23-55	28-65	35-75	45-100	50-150	95-260	140-310
Power(kw)	37	37	45	55	110	160	250	315
Theoretical weight(t)	3.9	4.5	6	10.5	14.4	22	35	49.7
