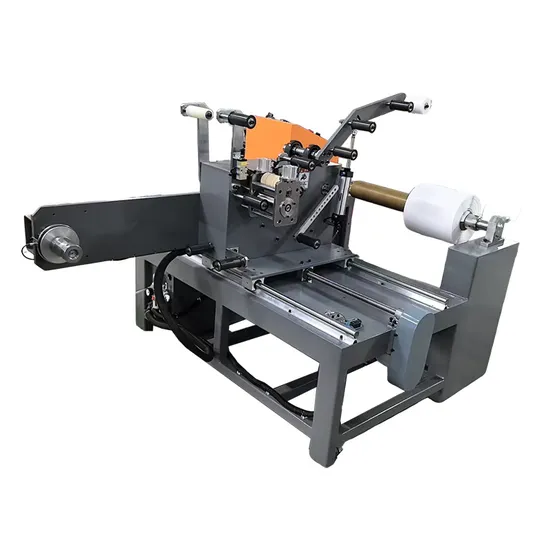

Big Reel Bobbin Water Blocking Tape Traverse Winding Spooling Machine

Product Description

Product Description
This spooling machine is designed for traverse winding the tapes from pancake pad roll to spool forms. It can do continuous traverse winding and step traverse winding as per customer's process request.
The traverse winding machine is widely used in cable materials industries and packing tape / label industries. It's workable for many kinds of materials such as PET, BOPP, mica tape, kraft paper, non-woven fabric, aluminium mylar tape, aluminium foil, copper tape, water blocking tape and etc.
Product Parameters

Material tape width (mm)	10 - 60
Material pad diameter (mm)	800 Max.
Material pad core diameter (mm)	50, 75, 150 optional
Winding speed (m/min.)	0 - 300
Spool width (mm)	10 - 500
Spool outer diameter (mm)	600
Spool core inner diameter (mm)	76, 150 opitonal
Power:	380v, 3Phase, 4.5kw
Machine weight (kg)	650
Machine dimension (mm)	1800 x 800 x 1400

Product Features
1. The tape in in one straight line from unwinding to rewinding, no twist in the feeding routine.
2. Unwinding is driven by magnetic brake or pneumatic brake with tapering tension control.
3. Servo motor drives a ball bearing screw rod to make traverse moving of unwinding part to form spool.
4. Winding shaft is driven by ac motor or servo motor.
5. An pneumatic cylinder supports the prossure roller beam to ensure proper pressure on spool
6. The spool winding parameters are set from the HMI touch screen, start/stop and speed +/- are operated with physical switch. Operating is easy.
Detailed Photos
Certifications
FAQ
1. Do you provide installation and commissioning service after delivery?
Yes, if in field installation and commissioning requested, we can send well trained staff to the buyers' place. The buyer should pay the round way tickets and accomodation costs.
2. How do you do aftersale service?
Firstly we need the users to report the detailed situation of the machine performance by video call or email. If only software / program problem, we can solve the issue by remote computer assistance. If any hardwares need to be replaced, we will send the replacement. Freight should be paid from the user side.
3. Do you accept customized order?
Yes, almost all these kinds of machines are made according to the buyer's request. Firstly we need to study customer's request details, and then make the offer accordingly.
4. How to select tension control options?
For adhesive tapes, it's better to use tapering type tension control. Automatic tension sensor is good for unwinding smooth low tolerance tape materials.
5. Can we see some existing machines before confirm the order?
Yes, there are some customers quite near our place. Welcome to visit us to inspect the machines.

---
