5 Axis Aluminum CNC Milling Machine Vmc Machine Machining Center Vmc960

Product Description

Product Description

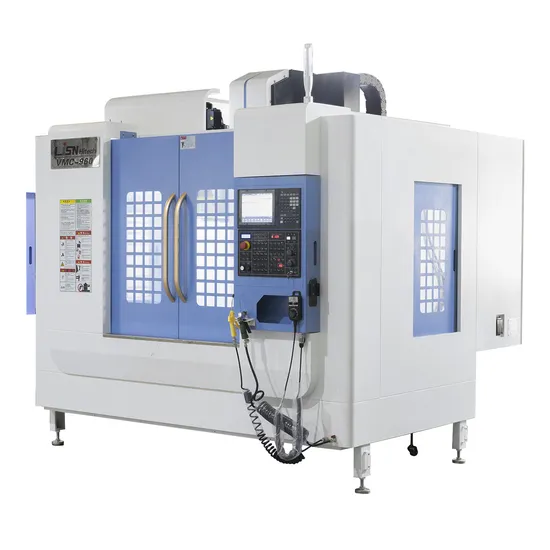

The 3 axis VMC960 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.

Main Features
Mitsubishi M80 or Fanuc 0i control system High speed and precision spindle Excellent chip flushing system Excellent structure design High rigidity of the whole machine Excellent worktable size: 600mm*1000mm Excellent load capability of worktable: 600kg Detailed Photos
Product Parameters

Item	Specifications	MODELS→	VMC960
Travel Range	X/Y/Z Axis Travel	mm	900/600/600
Worktable	Worktable (WidthxLength)	mm	1000x600
	Max Load Bearing Of Worktable	kg	600
	T-Slot(number of SlotxSlot WidthxPitch)	mm	5x18x100
Spindle	Spindle Hole Taper	type	BT40
	Spindle Speed Range	r/min	8000
	Spindle Drive Mode	type	/Belt typ/Direct Connection
Feedrate	X/Y/Z Rapid Feed Speed	m/min	36/36/36
	Max Cutting Feed Speed	mm/min	1-8000
Motor	Spindle Motor Power	kw	5.5-7.5
Accuracy	X/Y/Z Position Accuracy	mm	0.005
	X/Y/Z Re-Position Accuracy	mm	0.003
Machine Dimension	Machine Dimension	mm	2380 X2650X2440
	Machine Weight	kg	4500

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
