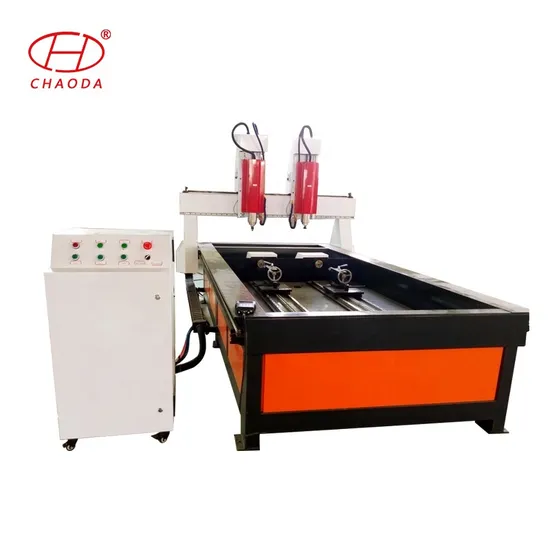

China Factory 1325 CNC Router for Stone Marble Granite Engraving Machine for 3D Column and Panel

Product Description

China Factory 1325 CNC Router for Stone Marble Granite Engraving Machine for 3D Column and Panel

Description	Specification
Model	JCS1325R-2H
Rotary Working Size	1200mm(L)*400mm(D)*2 pieces
Flat Working Size	1200m(L)*400mm(W)*2 pieces
Machine Size	2080mm(L)*2150mm(W)*1950mm(H)
Spindle	4.5kw water-cooled spindle*2 pieces
Spindle Rotating Speed	0-24000rpm
Max Moving Speed	20m/min
Max Working Speed	15m/min
Repositioning Precision	0.05mm
Control System	4 Axis Ncstudio
Motor and Driver	Leadshine Stepper Moter and Driver
Inverter	TAIWAN Delta
Compatible Software	Artcam, Type 3, Powermill
Max Burden Weight	1500KG
Oil System	Automatic
Working Valtage	3 Phase AC 380V 50HZ
Total Net Weight	2850KG

Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum extruded, Copper and Aluminum Plates
Sample Pictures:
