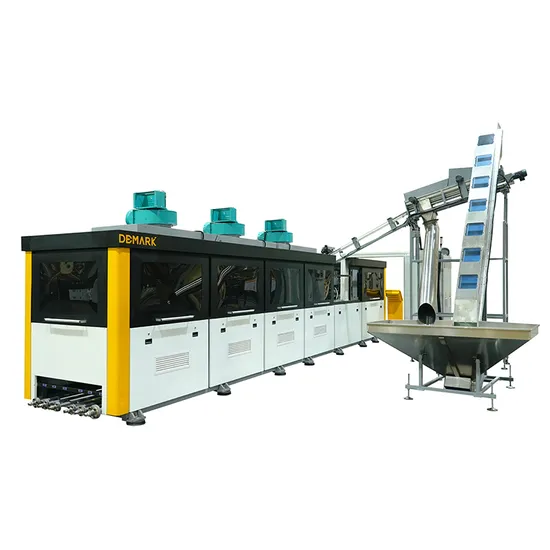

Demark Full Automatic 4 Cavity Pet Bottle Blowing Machine

Product Description

Product Description
The PET Bottle blowing machine is an innovative piece of equipment designed for safe and efficient production of drinking water bottles. This cutting-edge technology ensures that the bottles are produced in a sterile environment, free from contaminations. The machine comes with advanced features that enable it to produce a vast number of bottles at high speeds. It uses high-quality materials to ensure that the bottles are durable and can withstand the rigors of transportation. Investing in such a machine is a perfect solution for businesses that intend to produce drinking water bottles in large quantities.
PET bottle blow machines are widely used in the production of drinking water bottles. These machines have the ability to produce high-quality, multi-purpose bottles that are perfect for everyday use. PET bottle blow machines are an efficient way to manufacture water bottles in bulk, while also ensuring that the bottles are safe for human consumption. They are equipped with advanced technology, ensuring that the bottles produced are durable and long-lasting. These machines are easy to use and require minimal maintenance, making them perfect for both small-scale and large-scale production. So, if you're looking to produce high-quality drinking water bottles, PET bottle blow machines are an excellent choice.
The range of water blow machines available in the market varies in terms of production capacity and features. You can find machines suitable for small-scale production as well as high-volume production lines. The latest technologies in stretch blow molding machines have made them more efficient, with features like energy-saving, automation, and remote monitoring.
Product Advantages
1. Large-scale production: With a water bottle blow molding machine, you can produce a large quantity of water bottles in a short amount of time.
2. Cost-effective: Investing in a water bottle blow molding machine can help you save money in the long run as opposed to purchasing pre-made bottles.
3. Customization options: The machine allows for various bottle sizes and shapes to be created, allowing for greater customization options for the business.
4. Environmental friendliness: By creating reusable water bottles, the blow molding process helps reduce the amount of plastic waste in the environment.
5. Faster production time: The machine is capable of producing bottles at a high speed, making it a more efficient and time-saving option for businesses.
6. Improved product quality: The machine ensures consistent output of high-quality water bottles, leading to greater customer satisfaction.
7. Increased profitability: By using a water bottle blow molding machine, businesses can increase profits through cost savings and increased production efficiency.
8. Low maintenance: The machine is easy to operate and maintain, making it a convenient and hassle-free option for business owners.
Product Parameters

Parameters of the molding machine
Embryo bucket volume m3	TBD
Maximum bottle speed BPH	67500
Applicable bottle preform size mm	dia.25-dia.45 H<=190
Moter power(elevator + billet trimmer +...) kw	2.2
Voltage/frequency/phase	380V+/-10%/50Hz/three-phase five-wire
Bottle blowing machine and heating machine
Components	Item	Parameters
Blow bottle part	Mold (cavity) quantity	16
	Flask height (lower part of support ring)	1.5m
Heating part	Heating unit	20
	Infrared tube layer	9
Eectric parameter	Electrical voltage	380V
	Frequency	50/60Hz
Total installed power	Total power	490
Air source	The compressed air pressure	3.5-4.0MPa
	High pressure compressed air consumption	TBD
Heating machine cooling water (water temperature <=20ºC)	Presssure	0.5MPa
	Flow	6m³/h
	Power
Mold cooling water (water temperature 5-12ºC)about mold	Pressure	0.8MPa
	Flow	10m³/h
	Power
Mold cooling water (water temperature 5-12ºC) bottom mold	Pressure	0.8MPa
	Flow	2m³/h
	Power
Weight	Main engine/heating machine/electric control box etc	16t
Equipment dimensions	Main machine(L×W×H)mm	4200*3200*3650
	Heating machine(L×W×H)mm	5480*1700*2210
	Billet sorting machine(L×W×H)mm	determined by layout
Preform size	Preform height	≤150mm
	Inside diameter of preform	Φ14mm-Φ26mm
	The diameter of the supporting ring	Φ26mm-Φ40mm
Bottle size	The diameter of the round bottle	≤Φ95mm
	Bottle size (diagonal)	≤95mm
	Height below the supporting ring	≤300mm
	Capacity range	0.2L-2.5L

---
