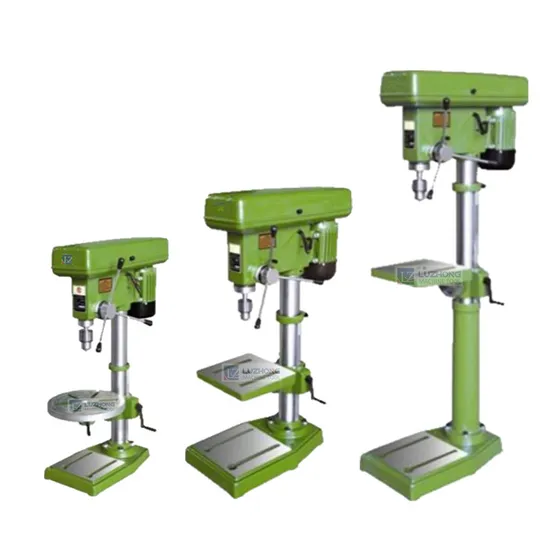

Small Metal Drill Press Hand Bench Series ZQ4125 ZQ4132 Drilling Machine

Product Description

Small Metal Drill Press Hand Bench Series ZQ4125 ZQ4132 Drilling Machine Product Description
Product description:
Light and flexible ,it can be used not only on machine processing,repairing but also DIY repairing and daily use.
Standard accessories :
Drill chuck
Taper sleeve(only MT3 spindle)
Arbor(only taper hole spindle)
drift(only taper hole spindle)
Wrench
Special accessories:
Safety guard
vice Product Parameters
Product main technical specifications:

Model	ZQ4125/ZQ4132	ZQD4125/ZQD4132
Max. Drilling capacity(mm)	25/31.5	25/31.5
Diameter of column(mm)	85	85
Spindle travel(mm)	110	110
Distance spindle axis to generating line (mm)	200	200
Max distance spindle nose to worktable(mm)	480	390
Max. Distance spindle nose to base(mm)	670	1140
Spindle taper(mm)	Mt3	Mt3
Spindle speeds range(r/min)	200-2280/150-2270	200-2280/150-2270
Spindle speeds series(r/min)	9/12	9/12
Dimension of worktable surface(mm)	280×280 or Φ360	280×280 or Φ360
Dimension of base(mm)	566x356	566x356
Overall height(mm)	1110	1680
Motor(W)	750	750
G.W/N.W(kg)	105/98	115/108
Packing size(cm)	108x77x34	108x77x34

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
