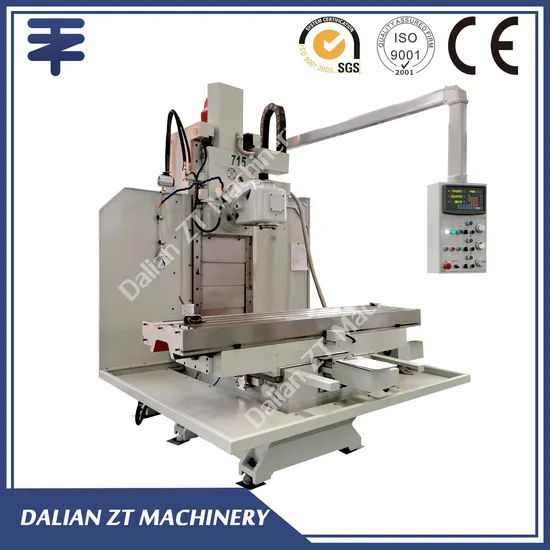

Heavy Vertical Bed Type Large Heavy Milling Machine X715 X716 X5750

US$25,000.00-32,000.00 1 set (MOQ)

Basic Info.

Model NO.
X715
Type
Bed-type Milling Machine
Object
Plane
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Worktable size
2100X500
X-axis travel
1500mm
Y-axis travel
650mm
T-slot
4/20/100
Spindle bore taper
ISO50
Net weight of machine
7300kg
Transport Package
Wooden Cases
Specification
11 kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84595900
Production Capacity
200 Sets/Year

Product Description

Main Feature Variable spindle speeds in 2 steps Ball screws on X,Y and Z axes Servo motor on X, Y and Z-axis Technical specifications:
Specifications Unit X715
Spindle hole taper mm 7:24 ISO50
Spindle speed range r/min Variable 6-300,30-1500
Distance between spindle axis and column guideway mm 610
Distance between spindle nose and table surface(V) mm 0-650
Distance between spindle axis and table surface(H) mm 8-660
Table size mm 2100*500
T slots mm 4/20/100
Table travel-X mm 1500
Table travel-Y mm 650
Table feed-X/Y mm/min 2.5-3000
Table feed-Z mm/min 2.5-2500
Table rapid feed X/Y/Z mm/min 6000/6000/3000
Main motor power Kw 11
Torque of X/Y/Z axis AC servo motor Nm 18/23/18
Cooling pump motor power W 90

Standard accessories:
NO. Item Specifications Q'ty.
1 Milling machine X715 1
2 Draw bar 1
3 IS050 Milling chuck 4,6,8,12,16, 18,12,26 1set
4 IS050 taper shell end mill holder ISO50-Φ40 1
5 7: 24 middle cover 7: 24 IS050/MS4 1
6 Oil gun 1
7 Foundation bolt M16×450 6
8 Allen wrench 5,8,10 1
9 Double-ended wrench 27×30 1
10 Double-ended wrench 36×41 1
