Highsun Plastic Machine 260tons Injection Molding Machine Suitable for PP, PE, ABS, Peek

Product Description

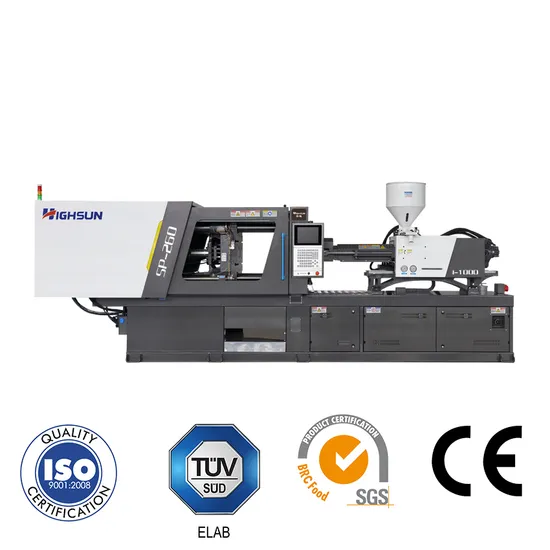

1. SP260 injetion molding machine
2. Injection molding machine parameter table

MODEL: SP260/i1000
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	50	55	60
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm3	490	593	706
	INJECTION WEIGHT(PS)	g	446	540	643
	INJECTION PRESSURE	MPa	236	194	163
	INJECTION RATE	g/s	233	282	336
	PLASTICIZING CAPACITY	g/s	28	37	44
	SCREW SPEED	rpm	240
CLAMPING UNIT	CLAMPING FORCE	KN	2600
	MOVING MOULD-PLATE STROKE	mm	580
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W*H)	mm	580*580
	HYDRAULIC EJECTOR FORCE	KN	87
	HYDRAULIC EJECTOR STROKE	mm	160
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	38
	HEATING CAPACITY	KW	16.83
	MACHINE DIMENSION (L*W*H)	m	6.04*1.60*2.28
	MACHINE WEIGHT	t	9
	OIL TANK CAPACITY	L	300

3. Some details about our machine

	1. The optimized designed 5-point toggle clamping structure has a central clamping effect and bigger opening stroke, lower axis-pin contact stress, more suitable for deep cavity product molding. It makes the clamping force acts on the mold directly, and avoids the disadvantage of outward toggle structure caused the inclination of mold-plate when making the long stroke and eccentric mold. The moving plate moves faster, more stable, and more controllable, and the machine dry cycle cycle is shorter.
2. The ultra-high rigidity square plate and tie-bar structure design caters to international mold design standards, improves mold adaptability, reduces principal stress, the plate force is more uniform, extends the life of tie-bar, and more effectively fit and protect the mold.
	3. The front connecting rod interprated desigh and the toggle non-chuck structure improves the life of the machine and reduces the maintenance cost. The ejection stroke is longer, the ejection part is equipped with a forced retracting device as standard, and the ejection position can be adjusted freely.
4. Side-mounted new mechanical safety structure, more convenient to operate and safer to use. Боковая новая механическая конструкция безопасности, более удобная в эксплуатации и более безопасная в использовании

4. Workshop
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
5. HIGHSUN
HIGHSUN is one of the most professional lnjection Molding Machine manufacturer with morethan 50 years' history (founded 1973)in Ningbo, China.
As one of the leading innovator and developer of lniection Molding Machine, HIGHSUN has the world's first class production plant occupied more than 100 million square ft; equipped with the most advanced CNC machining system and processing equipments & inspection devices (CNC utilizationratio: above 83%), achieve with mass production with higher-quality and quicker-delivery.
Production capacity may reach 7000sets per year. Supply variety of series with clamping force from 98ton to 2500ton coverage with HXM(servo drive), HXH (high-speed performance), SP(middle-speed), HXYD(Hybrid & Full electric), HXZ(two-platen), HXS(double color) and special solutioras PET series, PVC series etc.
Realized more than 110million US$ sales in 2018, constantly keep 15% increase in sales in the past 3years; and from 2014 to 2018, a fifth consecutive HX awarded TOP-3 leader by CPIMMA for comprehensive strength of IMM manufacture and develop.
Based on strict management,superior quality, stressing reputation and paying attention to service. HIGHSUN hot sale to Europe and United States, Asia, Africa and the world, won majority ofcustomers good reputation and recognition.
Certification

---
