High-Speed Double and Single Steel Wire Braiding Machine for Rubber Hoses

Product Description

20 24 36 Spindles Double or Single High Speed Steel Wire Braiding Machine for Rubber Hose
PRODUCT DESCRIPTION

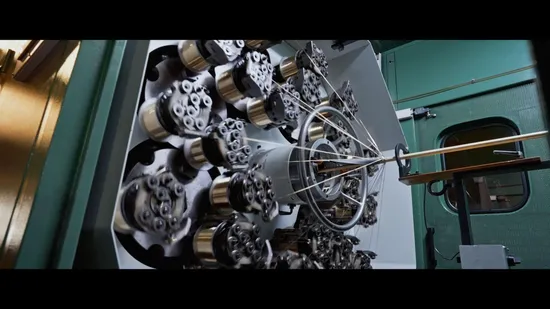

Overview Of BZH Braiding Machine: BZH series high-speed braiding machine is an advanced equipment developed by our company to produce high-quality steel wire braided hose based on BZM series. Its operating principle and braid characteristics are the same as those of BZM series. Its greatest advantage is that the braid efficiency is improved by 30% by optimizing the structure after completely copying the advantages of M series. It consists of BZH2 type and BZH3 type, in which BZH2 has a 2×2 braided structure and BZH3 type has a 3×3 braided structure. This machine has the characteristics of fast braiding speed, good quality, large spindle thread capacity, small tension fluctuation, accurate braid angle and stable work.

Highlights Of BZH Braiding Machine: 1.The spindle has a large wire capacity: 14KG/ spindle(steel wire)
2.The distance difference between the spindle running from the outer ring to the opposite braid point of the inner ring is compensated by the spindle compensation device, which can control the theoretical tension difference of the fabric to be not less than 76-90% of the spindle pay-off tension. Spindle pay-off adopts stepless pay-off structure, which has long service life and low failure rate.
3.Fast running speed.
4.The main engine and the tractor are driven by their own motors. Through PLC control and good man-machine interface, the speed of the main engine and the tractor is effectively controlled to obtain the best braid process requirements.
5.Slow tram drive function
6.Separate drive function of tractor.
7.Automatic lubrication system.
8.Broken wire detection, tube blank detection, medium film detection and tension detection device, and automatically alarm/stop if there is any problem.
9.Intelligent fault alarm/parking prompt function.

Parameters Of BZH Braiding Machine:

Equipment Type	BZH2			BZH3
Braid Structure	2X2			3X3
Spindle Number	20	24	36	18	24	36
Maximum Speed (rpm)	45.00	37.50	20.00	86.30	64.70	43.10
Center Height (mm)	1125	1125	1365	1125	1125	1365
Braiding Diameter (mm)	8.5~23	11.5~31	15~45	8.5~23	11.5~31	15~45
Wire Capacity (Steel Wire)	14Kg	14Kg	14Kg	14Kg	14Kg	14Kg
Total Power (kW)	20	22	33	20	27	38

---
