Antistatic Cross Lapper Belt for Dilo Crosslapping Machine

Product Description

Product Description
In the non-woven production line, the crosslapper plays an important role, and in which, the quality of the crosslapper belt directly determines the performance of the web laying. Our crosslapper belt offer such a guarantee. It combine a low belt weight, high flexibility in the running direction, a good lateral stiffness, and a wear resistant belt surface, delivering optimal production performance with a long service life. The belt's excellent electrical conductive properties prevent fibers from sticking to the belt due to static charges. All above properties benefit from the high-grade TPU combined with chemical resistant polymer surface coating.
Our Advantages

• Excellent chemical resistance
• Consistently high electrical conductivity,
• Stiff and robust design
• Excellent release properties, low drag surface
Product Parameters

Type	Thickness (mm)	Weight (Kg/M2)	Tensile force for 1% elongation (N/mm)	Min backing roller Diameter (mm)	Standard width (mm)
U13/0BA-N HC	1.0	1.1	6	10	3200

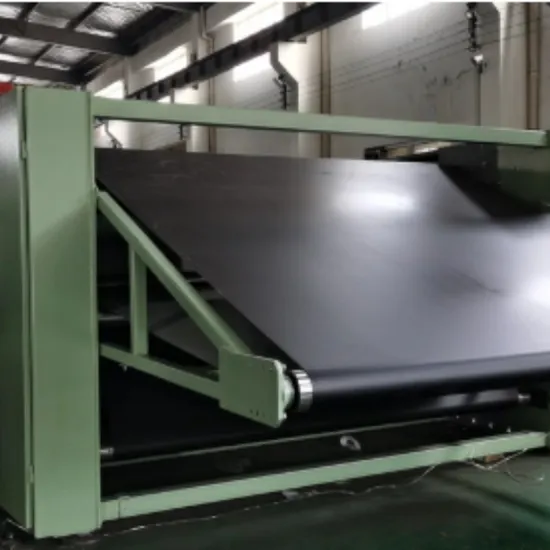

Detailed Photos

FAQ
Q1: How to choose a proper belt for your machine?
When choose a belt, we need consider such factors: min diameter of roller in Carriage, lapper speed, thickness, belt connection type,even the power of driving motor
Q2: Which roller in carraige shoud be consider ?
Please measure the diametero of roller pointed at in red arrow.

---
