Vertical Drilling 50-100mm Sumore Bench Equipment Tool Industrial Machine Drill Press Manufacture

Product Description

Product Description

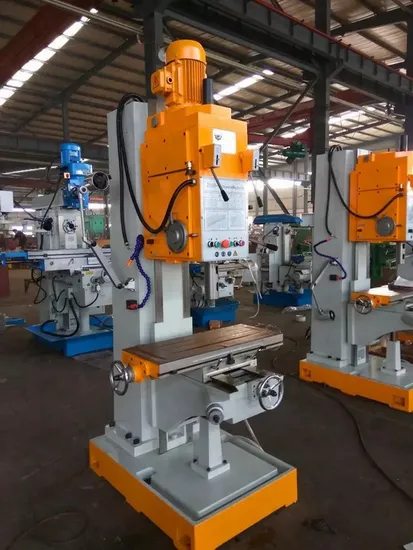

SP5163B Drill Press Drilling Machine 63mm Bench Vertical Drill Press Machine With Factory Price SUMORE
1. Z5163B vertical drilling machine, which can be used for drilling, reaming, countersinking, countersunk drilling, boring and tapping. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
2.The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters

Main technical parameters SP5163B Maximum borehole diameter mm 63 Maximum Feed Resistance N of Main Shaft 3000 Maximum spindle torque N.m 800 Main motor power kw 5.5 Conicity of main cone hole NO 5 Spindle speed r.p.m 40-570(9steps) Feed per spindle revolution mm/rev 0.11-0.78(6steps) Spindle stroke mm 250 Spindle box stroke mm 250 Distance from spindle centerline to pillar mm 375 Longitudinal and transverse travel mm of worktable Vertical travel mm of worktable 300 Maximum distance from end face of spindle to worktable mm 850mm Table size mm 650*550 Machine tool weight kg 2500 Outline dimension mm 1300*840*2580

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
