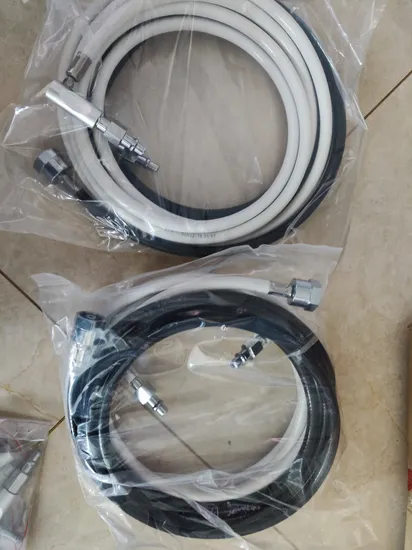

Nist Connection Medical Hose Assembly with DIN 13260-2/BS5682 Probes

Product Description

MEDICAL HOSE ASSEMBLY / NIST TO DIN 13260-2
MEDICAL HOSE ASSEMBLY / NIST TO BS5682

Medical Gas	ISO Colors		USA colors	China Colors
Oxygen	White		Green	Blue
Medical Air 4	Black	White	Yellow	Black
Medcical Air 7	Black	White	Red	Black
Vacuum	Yellow		White	Yellow
N20	Blue		Blue	White
CO2	Grey		Grey	White
WAGD	Purple		Purple	Purple
Nitrogen	Black		Black	Black
Helium	Brown		Brown	Brown

Medical Hose is suitable for transfer of low pressure gas in the food systems of medical tools.3 layer non-toxic PVC with texile reinforce,high flexibility without silicon and heavy metals.This hose is suggested for the transportation of oxygen,nitrogen oxide,air,helium,xeno,and nitrogen mixture,air for surgical tools.
Product Dimension: 1/4" MEDICAL HOSE Inner Diameter:6.3MM 1/4 inch Outer Diameter:12MM 0.47inch Thickness:2.85mm 0.11inch Weight per meter: 102 GR/M Material:Non-toxic PVC Working temperature: -15+50 celsus degree Working pressure:20 Bar Burst pressure:60 Bar Layers Adherence:12-15N/m
Product Dimension: 5/16" MEDICAL HOSE Inner Diameter:8MM 5/16 inch Outer Diameter:14MM 0.55inch Thickness:3mm 0.12inch Weight per meter: 131 GR/M Material:Non-toxic Medical Grade PVC Working temperature: -15+50 celsus degree Working pressure:20 Bar Burst pressure:60 Bar Layers Adherence:12-15N/m
MAIN TECHNICAL FEATURES:
-High Flexibility without silicon and heavy material
-Smooth sureface
-UV resistance
-Ozone resistance
-3 layer atoxic PVC with textile reinforce

---
