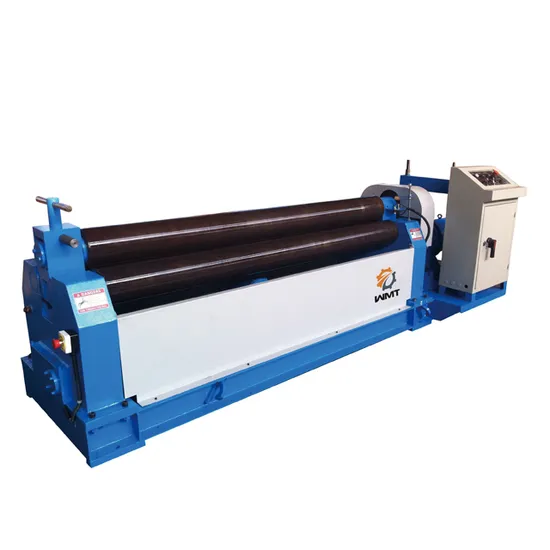

W11 16X3000 Symmetric Rolling Machine with Three Rollers

Product Description

Main performance:
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers,which is achieved through the drive of the screw,the nut,the worm and the lead screw.The two roller rotates,and provides the plate materials with torque throught the engagement of the output gear of the moderator with the gear of the lower rollers.The disaadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.
Main specification:

Specification	Max Thickness of Coiled Plate	Max Width of Coiled Plate	Yielding Limit of Sheet Metal	Coiling Speed	Min Full Loading Diameter of Coiled Plate	Diameter of Top shaft	Diameter of Bottom shaft	Central distance between Bottom Shafts	Motor Power	Overall dimensions
	mm	mm	MPa	m/min	mm	mm	mm	mm	Kw	mm
W11-4×1500	4	1500	245	5	300	150	140	185	3	2900×720×1000
W11-6×1500	6	1500	245	5	450	160	160	250	4	2900×720×1000
W11-6×2000	6	2000	245	4.5	450	185	170	250	5.5	3650×820×1050
W11-6×3200	6	3200	245	4.5	380	240	180	280	7.5	4850×1100×1100
W11-8×2000	8	2000	245	4.5	400	230	180	300	5.5	3700×820×1050
W11-8×2500	8	2500	245	4.5	600	230	180	300	7.5	4150×1100×1100
W11-12×2000	12	2000	245	4.5	600	240	180	280	7.5	36500×1100×1100
W11-12×2500	12	2500	245	4.5	600	260	220	340	11	4200×920×1200
W11-12×3000	12	3000	245	4	700	280	250	360	11	4900×1300×1300
W11-16×2000	16	2000	245	4	650	260	220	340	11	3700×920×1200
W11-16×2500	16	2500	245	4	700	300	250	360	15	4400×1300×1300
W11-16×3200	16	3200	245	4	850	340	280	440	18.5	5300×14000×1400
W11-20×2000	20	2000	245	4	700	280	250	360	15	3900×1300×1300
W11-20×2500	20	2500	245	4	850	340	280	440	18.5	4600×1400×1400
W11-25×2000	25	2000	245	4	850	330	270	430	18.5	4100×1400×1400
W11-25×2500	25	2500	245	4	1200	380	310	550	22	5600×1550×2000
W11-30×2500	30	2500	245	4	1200	400	350	550	30	5760×1700×2110
W11-30×3000	30	3000	245	4	1200	450	390	600	37	5400×1700×2210

---
