Product Description
Product Description
About our company
Hebei Lanying Technology Co., Ltd. since its establishment, we have been committed to the production and research and development of wire mesh weaving machines for more than 20 years. Our SG100, SG130, SG160, SG180 series of wire mesh weaving machines cover the weaving from light to heavy fabrics. Can weave stainless steel wire, copper wire, nickel wire, aluminum wire, platinum, silver, alloy, polyester and so on. The CNC system based on PLC control, the weft insertion system controlled by AC servo motor, the calculation method of tension control, and the CNC let-off and winding mechanism have improved the quality of weaving. Our CNC wire mesh weaving machines are not only widely used in China, but also exported to foreign countries, such as Japan, South Korea, India, Vietnam, Europe and other countries and regions. V:19133101113
Our features
Wide compiling range, high precision, low noise, diverse colors, easy maintenance
Technology specification
The SG100 series is mainly suitable for the weaving of thin, precise silk screens with diameters ranging from 0.012 to 0.3mm. Wide width can be customized. Weaving density from 40-600 mesh/inch. High speed, low consumption. Base tension 15000N/M. CNC let-off, CNC winding, large screen man-machine operation, accurate display of real-time tension and automatic adjustment
The SG130 series is mainly used for medium thickness wire weaving, with wire diameters ranging from 0.06-0.45mm, and wide width can be customized. Weaving density from 20-400 mesh/inch. High speed, low consumption. Base tension 20000N/M. CNC letting off, CNC winding, large screen man-machine operation, accurate display of real-time tension and automatic adjustment
The SG160 series is mainly suitable for the weaving of relatively heavy silk screens, with wire diameters ranging from 0.1-0.7mm. Wide width can be customized. Weaving density from 10-350 mesh/inch. High speed, low consumption. Base tension 40000N/M. CNC let-off, CNC winding, large screen man-machine operation, accurate display of real-time tension and automatic adjustment
The SG180 series is mainly suitable for the weaving of ultra-thick silk screens, with wire diameters ranging from 0.2-2.1mm. Wide width can be customized. Weaving density from 6-260 mesh/inch. High speed, low consumption. Base tension 60000N/M. CNC let-off, CNC winding, large screen man-machine operation, accurate display of real-time tension and automatic adjustment

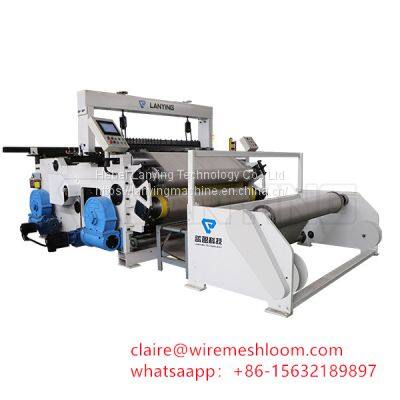

Products picture
>>
