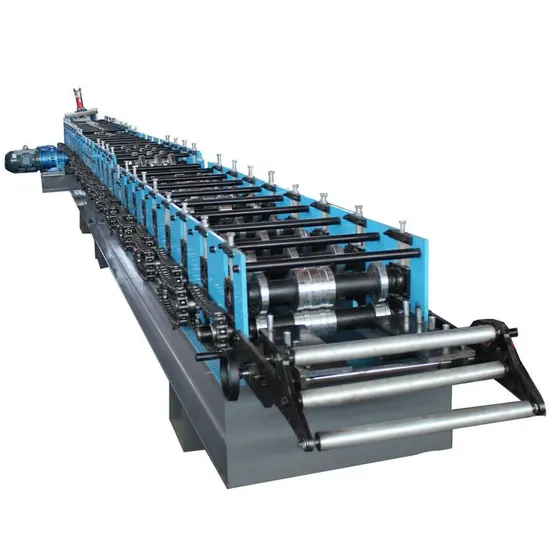

2024 Water Gutter Rain Gutter Roll Forming Machine

Product Description

6. Equipment detailed parameters
No.	Parameters
1	Suitable Material			Material		GL, GI, PPGI
				Thickness		0.4mm-0.8mm
				Width		400mm
2	Rows of rollers				22 rows
3	Roller material				45# steel with CNC machining, plated hard chromium surface
4	Diameter of shaft				¢70mm
5	Material of main shaft				45# steel with grinding process and then slack quench processed
6	Frame				welded with 350H section steel
7	Wall panel thickness				16mm
8	Main motor power				7.5KW
9	Hydraulic station power				4KW
10	Main electrical control system				Delta PLC
11	Material of cutter				Cr12MoV with hard treatment, HRC52-68
12	Driving mode				single chain 1 inch
13	Productivity				8-10m/min
14	Power supply				380V, 60HZ, 3 PHASES
15	Dimensions of major structure				10240mm*800mm*900mm (approximate)

1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.

---
