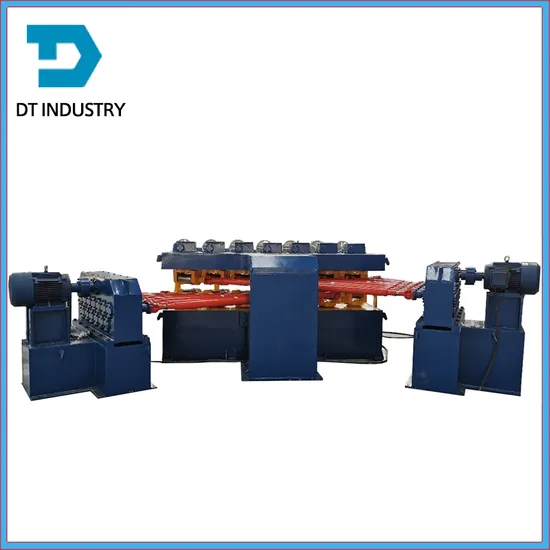

Ygj40 Ф 10-40mm Bar and Pipe Vertical Multiple Rollers Straightening Machine

Product Description

Product Description
The machine is a vertical tubing & bar straightening machine whose straightening rollers are arranged horizontally and crossed. Straightening rollers apply oval translation curve, which is more advanced comparing with traditional dual-curve rollers. The straightening machine is mainly used for straightening curvature of steel and non-ferrous tubing , reducing ovality of the section and improve roughness of the surface. It is fit for cold-drawn steel pipe plant, steel company, bearing plant, air-conditioning pipe plant and other machinery manufacturers as auxiliary equipment.
YGJ40 Ф10-40mm bar and pipe vertical multiple rollers straightening machine

Model No.	YGJ40
Diameter range	Ф10-40mm
Yield limit	≦420 N/mm²
Straightening speed	30 m/min
Angle adjustment range	27-33 degree
Straightening roller throat diameter	Φ130mm
Roller length	175mm
Allowable bending before straightening	≦30 mm/m
Once straightening bend mm/m	≦1 mm/m
Motor type	BYW-23
Motor power	7.5 KW×2
Motor turning speed	1480 r/min
Machine weight	5100 kg
Rollers layout	2-2-2-1

WELCOME TO CUSTOMIZE
Product Parameters
LJ12-40/60/100/160 vertical multiple rollers straightening machine

Model No.	LJ12	LJ40	LJ60	LJ100	LJ120	LJ160
Item	Vertical 6 rollers straightener	Vertical 7 rollers straightener	Vertical 7 rollers straightener	Vertical 7 rollers straightener	Vertical 7 rollers straightener	Vertical 7 rollers straightener
Diameter	Pipe & rod Φ10-Φ 12	Pipe & rod Φ10-φ40	pipe Φ 10-65 rod Ф 10-50	Pipe Φ30-100 rod φ 30-70	PipeΦ40-120 Rod φ 40-100	Pipe Φ60-160 Rod φ 60-130
Yield limit of the material	δs<=450 Mpa	δs<=350 Mpa	δs<=450 Mpa	δs<=350Mpa	δs<=350M pa	δs<=350 Mpa
Tube thickness	5mm	8mm	10mm	10mm	10mm	20mm
Minimum length	0.8m	2m	2.5m	>=2m	2.5m	3.5m
Straightening speed	42m/min	30m/min	32-21m/min	=24m/min	=32m/min	=25m/min
Driving rollers (Active rollers)	Up 3 down 3 full active	Up 3 down 3 full active	Up 2 and down 2	Up 2 and down 2	Up 2 and down 2	Up 3 and down 4
Press rollers		Down 1	Up 1 and down 2	Up 1 and down 2	Up 1 and down 2	Down 1
Adjustment Angle of rollers	28°-32°	±2°	28°-32°	28°-32°	36° -42°	27° -33°
Main motor power	Y902-60.75KW ×2	BWY27-23-11 reducer×2	YD160M-6/4 8/6.5KW	Y2001-4.30KW YI12-6.2.2KW×3	Y250M-455KW × 2	Y250M-4 75KW×2
Overall size(mm) (L x W x H)	1300×1000 x600	4000× 1550 x 1500	4505 × 1760 × 1660	2980× 1200 × 1800	3100 × 1600× 2290	11000 × 4500 × 4500
Machine weight	570kg	5500kg	8500kg	13000kg	=30000kg	=72500kg

Φ12-Φ40mm bar and pipe vertical multiple rollers straightening machine

Model No.	YGJ12-I	YGJ12-II	YGJ12-I	YGJ12-II	YGJ40
Diameter range	Φ4-12mm	Φ4 - 12mm	ф 6-20mm	ф6-20mm	Ф10-40mm
Yield limit	<=392 N/mm²	<=392 N/mm²	<=392 N/mm²	<=392 N/mm²	<=420 N/mm²
Straightening speed	25 m/min	25 m/min	32 m/min	32 m/min	30 m/min
Angle adjustment range	29-33 degree	29-33 degree	30-33 degree	30-33 degree	27-33 degree
Straightening roller throat diameter	ф50mm	ф50mm	Φ75mm	Φ75mm	Φ130mm
Roller length	60mm	60mm	100mm	100mm	175mm
Allowable bending before straightening	<=30 mm/m	<=30 mm/m	<=30 mm/m	<=30 mm/m	<=30 mm/m
Once straightening bend mm/m	<=1 mm/m	<=0.8 mm/m	<=1 mm/m	<=0.8 mm/m	<=1 mm/m
Motor type	Y90S-6	Y9OL-6	Y100L-6	Y112M-6	BYW-23
Motor power	0.75 KW×2	1.1 KW×2	1.5 KW×2	2.2 KW×2	7.5 KW×2
Motor turning speed	980 r/min	980 r/min	980 r/min	980 r/min	1480 r/min
Machine weight	600 kg	1000 kg	1200 kg	1800 kg	5100 kg
Rollers layout	2-2-2	2-2-2-2-2	2-2-2	2-2-2-2-2	2-2-2-1

Φ60-Φ100mm bar and pipe multiple rollers vertical straightener/straightening machine

Model No.	YGJ60	YGJ100-I	YGJ100-II	YGJ120	YGJ160
Diameter range	Φ15-60	Φ40-100	Φ40-100	Ф40-120	Ф60-160
Yield limit	<=490	<=490	<=490	<=520	<=580
Straightening speed	30	28	28	<=32	<=32
Angle adjustment range	27-33	27-30	27-30	24-30	21-30
Straightening roller throat diameter	ф156	Φ220	ф220	Ф260	Φ300
Roller length	240	300	300	380	420
Allowable bending before straightening	<=30	<=30	<=30	<=30	<=30
Once straightening bend mm/m	<=1	<=1	<=0.8	<=1.5	<=1.5
Motor type	Y160M-4	Y200L-4	Y200L-4	Y225M-4	Y250M-4
Motor power	11×2	30×2	30×2	45×2	55×2
Motor turning speed	1480	1480	1480	1480	1480
Machine weight	6000	16000	26000	25000	31000
Rollers layout	2-2-2-1	2-2-2-1	2-2-2-2-1	2-2-2-1	2-2-2-1

Detailed Photos

Successful Cases

Related products
Our Advantages
Making a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Company Profile
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.
The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
