Belt Conveyor for Crushed Stone

Product Description

Product Overview
Belt Conveyor
DT Series Belt Conveyors feature in high capacity, reasonable structure, easy maintenance, and standard components. It is widely used to transfer granular materials or packaged stuff in many industries, such as mining, metallurgical and coal etc. As per process requirement, one single belt or multiples belts can be assembled flexibly with other transferring equipment.
DT Series Belt Conveyors should be operated under the condition with temperature range from -20 Celsius Degree to +40 Celsius Degree. The temperature of transferred materials should be lower than +50 Celsius Degree.
DT Series Belt Conveyor could be categorized according to different standards as follows:
(1) Categorized by driving form:
1. Chain Driving Series
Driven by cyclical pin-wheel reducer (including outdoor electric motor) and chain-driving structure
2. Mechanical Driving Series
Driven by Side-hung reducer and belt-driving structure
3. Electric Rotor Driving Series
Directly driven by electric rotors
(2)Categorized by Installation Manners
1. Fixed Series

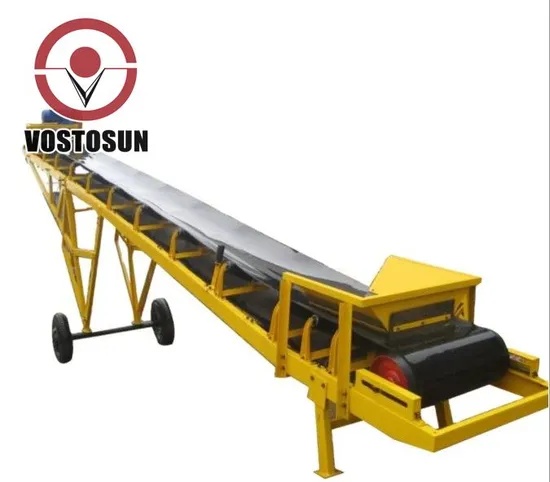

2. Mobile Series
It is equipped with tires and idler angle adjustment facilities so as to meet diversified requirements according to loading tasks.
(3) Categorized by Structure
The belt conveyors have three different structures:
1. U Steel Structure
2. Fame Structure
3. Thruster Structure
Note: it is optional for clients to order belt conveyors with or without repairing walk-ways. FEATURES AT A GLANCE The capacity listed in the above-mentioned table is calculated under following condition:1. The density of the transferred materials is 1.0t/m3;2. The accumulated slope of the material is 30º;3. The density of transferred materials should be less than 2.5t/ m3. PRODUCT SPECIFICATIONS

Belt Width(m)	Belt Length(m)/ Power(kw)	Belt Length(m)/ Power(kw)	Belt Length(m)/ Power(kw)	Belt Speed(m/s)	Capacity(t/h)
400	≤12/1.5	12-20/2.2-4	20-25/3.5-7.5	1.25-2.0	50-100
500	≤12/3	12-20/4-5.5	20-30/5.5-7.5	1.25-2.0	108-174
650	≤12/5	12-20/5.5	20-30/7.5-11	1.25-2.0	198-318
800	≤6/4	6-15/5.5	15-30/7.5-15	1.25-2.0	310-490
1000	≤10/5.5	10-20/7.5-11	20-40/11-12	1.25-2.0	507-811
1200	≤10/7.5	10-20/11	20-40/15-30	1.25-2.0	742-1188

Company Profile Shanghai VOSTOSUN Industrial Co., Ltd was founded in 2006, it is a subsidiary company of AVP GROUP, which has been focusing on centralized procurement and supply services for engineering, mining and Civil or Construction Project over the past decade. Cooperating with excellent institutes in the domestic industries, domestic high-quality suppliers, international financial and insurance partners, we have integrated all high-quality resources and established a mature oversea regional service networks around the world, e.g, regional service centers in Russia, Kazakhstan and Australia, providing machinery, equipment and parts display, warehousing and after-sales services throughout the country. Our service covers more than 30 countries and regions including Eastern Europe, Central Asia, The Middle East, Africa, South America, Southeast Asia, and Australia,etc. Since 2006, SHANGHAI VOSTOSUN, as the UN(United Nations) designated supplier for the procurement and supply of machinery & equipment for its aid projects in Asia and Africa, has provided lots of machineries, equipments and general contracting services for many national large-scale projects, such as: ·Kazakhstan Astana Capital Moving Project, ·Russia Voronezh Nuclear Power Station, ·Shanghai Pengxin Mining Congo (Gold) Copper Project, ·Equatorial Guinea National Highway Equipment General Contracting. The advantage resources of our company: 1.International standard purchasing and supply process management; 2.Technological solutions of production process experts; 3.Oversea exhibition rooms, warehousing and after- sales services; 4.Overseas basic engineering equipment leasing and projects construction. 5.International settlements, financing and insurance; Our Company Belief: "Professional Services to Customers, Achieve Future by Heart ".

---
