Stone Impact Crusher Machine

Product Description

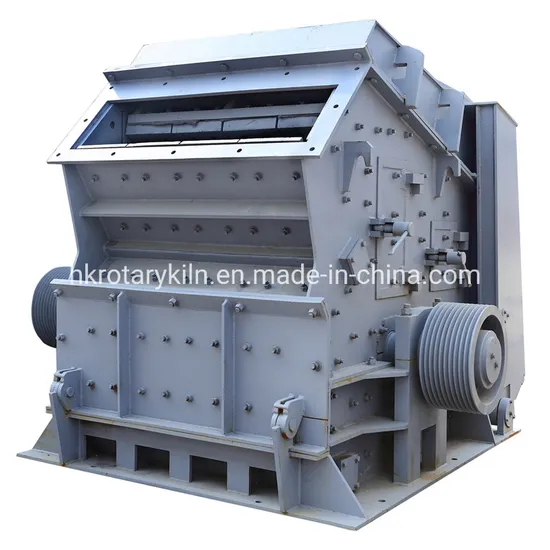

Stone impact crusher machine
Impact crusher is applicable to crushing ore of various compressive strength levels;
the breaker is ideal processing equipment for aggregate of top grade road surface and water and electricity construction.
Impact crusher with excellent performance, counterattack breaker can be widely applied in expressway construction,
hydraulic engineering, high speed railway and break stone for buildings.
Introduction and Application of impact crusher
1. Impact Crusher is a new product designed by our company after absorbing the advanced technology at home and abroad.
2. Impact crusher machine production function to deal with side length of not more than 500 mm, not more than 350Mpa compressive strength of the various courses, medium and fine material (granite, limestone, concrete, etc).
Features of Stone fine impact crusher
Impact Crusher is widely used for crushing hard materials in the following industries: mineral, quarry, water conservancy and hydropower, high way, rail way, chemical industry, building materials and so on.
Benefits of Stone fine impact crusher
1. Feed hole is big, crushing chamber is high, large size less power;
2. Clearance between impact plate and blow bar is easy to be adjustment, the final product size can be controlled easily;
3. Final product is of cubic shape;
4. High chrome blow bar, it is wearable;
5. No-board connection is easy to be checked;
6. High crushing ratio, comprehensive benefits are high.
Scene Rendering of Stone fine impact crusher
Warranty of Stone fine impact crusher
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Our work site of Stone fine impact crusher
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Final mesh size (mm)
4).Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.
Main Technical Parameters of Impact Crusher

Model	Specifications (mm)	Feeding size Opening (mm)	Max Feeding Size (mm)	Capacity (t/h)	Power (KW)	Weight (Excluding motor Kg)
PF-0607	644×740	320×770	100	10-20	30	4000
PF-0807	850×700	400×730	300	15-30	30-45	8130
PF-1007	1000×700	400×730	300	30-50	37-55	9500
PF-1010	1000×1050	400×1080	350	50-80	55-75	12127
PF-1210	1250×1050	400×1080	350	70-120	110-132	14000
PF-1214	1250×1400	400×1430	350	130-180	132-160	18579
PF-1013	1000×1300	650×1350	400	80-120	90-110	12000
PF-1315	1320×1500	860×1520	500	160-250	180-260	19000
PF-1320	1320×2000	860×2030	500	360-350	300-375	24000

---
