One-Way Disc Plow (disc plough)

Product Description

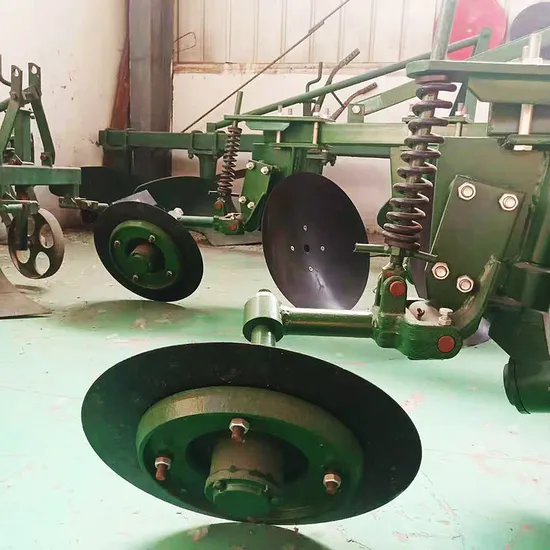

One- way Disc Plough
The 1LY series disc plows are mainly used for tillage on dry cultivated or fallow land, especially on high yield 'manure land, wheat and rice stubble fields. They have many good features, such as excellent pass ability and penetration, small farming resistance, easy operation. Our production of plow conform to optimal parameter strictly, so the plows can satisfy the agricultural requirements well by fine cultivation.
The disc plough is fully connected to the tractor, and the plough blade rotates during operation to plough the soil. It is especially suitable for overgrown weeds, upright stems, high soil specific resistance, and complex masonry fragments in the soil.
The plow has the characteristics of not entangling grass, not blocking, not blocking soil, cutting crop stems and overcoming soil masonry fragments, high work efficiency, good work quality, easy adjustment, firmness and durability.
Main technical specifications:

Model	Unit	1LYQ-420	1LYQ-320	1LY-325	1LY-425	1LY-525	1LY-625	1LY-530
Working width	m	0.8	0.6	0.75	1.0	1.25	1.50	1.5
Working depth	cm	20	20	25				30
Qty. of disc	pc	3			4	5	6	5
Dia. Of Disc	mm	510	510	660				710
Weight	kg	220	180	430	520	600	700	620
Linkage	kg	Three point-mounted		Three point-mounted
Matched Power	hp	30-40	25-35	50-65	65-85	80-100	100-120	90-120

---
