Basic Info.
Production Dimensions
| Ammonia ,Freon,CO2 System Refrigeration Valve |
| Valve Name | Model | Nominal Diameter | Nominal Pressure | Applicable Temperature | Applicable Medium |

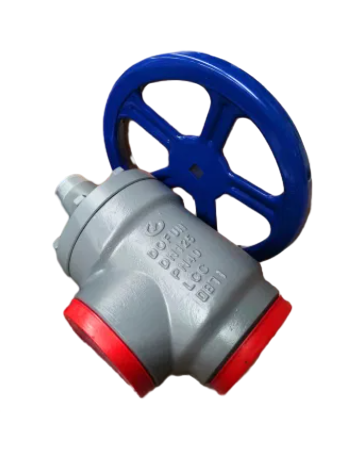

| Stop Valve | SVD | DN15 - DN300 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | R12, R22, R502, R134a, R404a, R507, R717 CO2,and etc. |
| Check Valve | CVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC |
| Stop Check Valve | SCV | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC |
| Regulating Valve | TVD | DN15 - DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC |
| Filter | FVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC |
| Overflow Valve | OFD | DN20,DN25 | Pressure Adjustment Range: 2-6.5bar 3.5-8bar | -50ºC~+150ºC |
| Liquid Level Switch | LS50 | DN20,DN25 | 2.8MPa | -50ºC~+65ºC |
| Inlet Pressure Regulating Valve | IPRV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC |
| Inlet Pressure Regulating Valve(Solenoid Forced Close) | IPRV-1C | DN25-DN125 | 2.8MPa | -50ºC~+120ºC |
| Inlet Pressure Regulating Valve(Solenoid Forced Open) | IPRV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC |
| Outlet Pressure Regulating Valve | OPRV | DN25-DN65 | 2.8MPa | -50ºC~+120ºC |
| Differential Pressure Regulating Valve | DPAV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC |
| Differential Pressure Regulating Valve(Solenoid Forced Open) | DPAV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC |
| Neck Flange Check Valve | NRVD | DN25-DN150 | 2.5MPa | -50ºC~+150ºC |
| Solenoid Valve | DEVSC/
DEVS | DN3-DN50 | 2.5MPa | -40ºC~+105ºC |
| Motor Valve | DFMV | DN20-DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC |
| Pneumatic Solenoid Valve | DGPV | DN40-DN125 | 2.8MPa | -50ºC~+120ºC |
| Two-Step Open Solenoid Valve(Normally Close) | DGPV-2C | DN40-DN125 | 2.8MPa | -50ºC~+120ºC |
| Two-Step Open Solenoid Valve(Normally Open) | DGPV-2N | DN40-DN125 | 2.8MPa | -50ºC~+120ºC |
| Valve Station | DFCV | | 4.0Mpa | -50ºC~+150ºC |
| Small Stop Valve | SVS | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC |
| Gauge Valve Series | SVA | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC |
| Motor Ball Valve | DBVD | DN25-DN150 | 4.0Mpa | -50ºC~+150ºC |
| Cartridge Filter | CFVD | DN15-DN80 | 2.5MPa | -50ºC~+150ºC |
| Double Stop Valve | DSVD | DSV1: DN25 | 4.0Mpa | -50ºC~+150ºC |
| DSV2:DN20,DN25,DN32 |
Our Workshop
FAQ Q1: Are you a factory or a trading company?A1: We proudly operate our very own state-of-the-art manufacturing facility. This enables us to ensure the highest standards of quality and cutting-edge innovation in every product we deliver.Q2: Is a sample available?A2: Absolutely! We are pleased to offer samples upon request. Please be aware that the cost of the sample will be borne by you.Q3: How can I place the order?A3: Placing an order with us is straightforward. Please provide essential details such as the mode and the structure u want when ordering.Q4:About transportationA4: We offer a variety of shipping methods including express, air, and sea freight. You have the flexibility to choose your preferred shipping company or opt for our trusted and reliable forwarders. We ensure thorough tracking of your cargo until it safely arrives at your doorstep.Q5: After-sales serviceA5: Our dedication to customer satisfaction extends well beyond the point of purchase. We provide exceptional after-sales service to address any concerns and ensure that our products operate seamlessly for you.
