Factory manufacture industrial candle processing machine / machine making for wax candle
The brief introduction of Candle processing machine/machine making for wax candle
1. Candle wax melting machine:
1. Candle wax melting machine consists of three layer (inner stainless steel board, heat-conducting layer and insulating course),
2. it is equipped with wax oil releasing switch and conduction oil releasing outlet.
3.Also it can match 380V or 220V according to customer’s requirement.
4. Electric hot tube heating the conduction oil and melt paraffin wax with the heat of conduction oil.
Change the solid wax into liquid wax before making the candle.
5. There are temperature controller, indicator light, AC contactor and wax temperature sensor or
temperature automation.
The main parameter of Candle wax melting machine
Model
| Volume
(kg)
| Voltage
(v)
| Motor (kw)
| Inside size (cm)
| Dimension(cm)
| Weight
(kg)
|
JXR-50
| 50
| 380/220
| 6
| 50×38×44
| 92×65×78
| 110
|
JXR-100
| 100
| 380/220
| 8
| 75×45×48
| 117×70×83
| 145
|
JXR-150
| 150
| 380/220
| 9
| 90×49×50
| 140×74×85
| 160
|
JXR-200
| 200
| 380/220
| 10
| 100×55×60
| 151×75×87
| 185
|

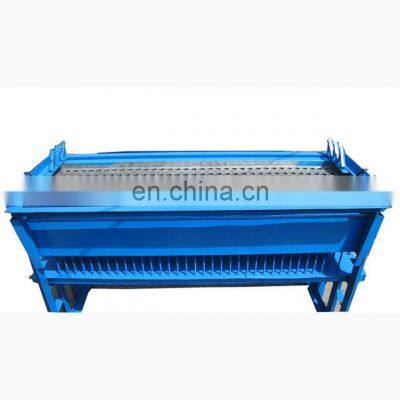

2. The pillar / taper / spiral candles making machines
1.We usually manufacture candle making machine according to our customers’s requirement,
these years mainly produce 2 lines to 10 lines wax models tube.
2.The candle with the mold clamp unit clamp wax in aluminum alloy plate.
3.The machine province labor, high efficiency, skilled workers each operation 4 -8 sets of
candle making machines at the same time.
4.The wax candle making machine clamp unit choose aluminum alloy manufacture, wax models tube using
seamless stainless steel tube after strench forming, polishing refined but become, have the best surface finish, anti-corrosive, cooling fast, good sealing performance
Model
| Capacity
| One piece candle weight
| The dia. Of candle
| Weight
|
JX-2-A
| 56pcs/time
300-350pcs/h
| 5-100g
| 8-28mm
| 85kg
|
JX-2-B
| 80pcs/time
550-600pcs/h
| 5-100g
| 8-28mm
| 96kg
|
JX-4-B
| 160pcs/time
950-1000pcs/h
| 5-100g
| 8-28mm
| 150kg
|
JX-6-C
| 240pcs/time
1200-1400pcs/h
| 5-100g
| 8-28mm
| 200kg
|
JX-10-D
| 400pcs/time
1800-2400pcs/h
| 5-100g
| 8-28mm
| 220kg
|
My friend, if you have any special requirement about any models of our industrial candle processing machine / machine making for wax candle pls tell us, we welcome you and
manufacture machines according to your required.
