Digital Data Logger DC DIN Rail Mounted 16 Multi Channel Energy Meter

Product Description

Digital Data Logger DC DIN Rail Mounted 16 Multi Channel Energy Meter
Product Description

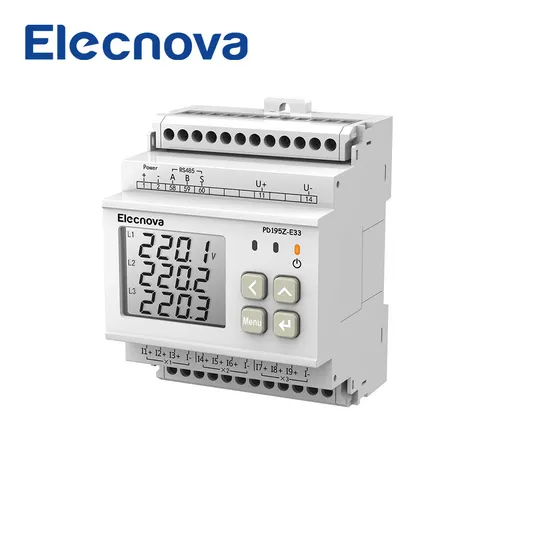

PD195Z-E33 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical Specifications

Display mode		LCD
Accuracy	U/I/P	0.5 Class
	Energy	1 Class
Voltage Input	Rated value	DC 40-1000V direct access
	Overload	Continuous:1.2Vn
	Power consumption	≤0.2W
	Impedance	≥6MΩ
Current Input	Rated value	DC 0-4V(external hall sensor)
	Overload	Continuous:1.2In
	Power consumption	≤0.1mW(each channel)
Auxiliary Power Supply	Working Range	AC,DC 80~270V, 50/60Hz
	Consumption	≤5VA
Communication		RS485,Modbus-RTU ,2-wire,up to 9600bps
Digital input		Optocoupler isolation,dry contact type (optional EK1 module)
Relay output		Contact capacity: AC 250V/5A, DC 30V/5A
Environment Conditions	Operating temperature	-20ºC~70ºC
	Storage temperature	-30ºC~80ºC
	Relative humidity	≤93%
	Altitude	≤2500m
Insulation		≥2kvac

Typical Wiring

Application


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

---
