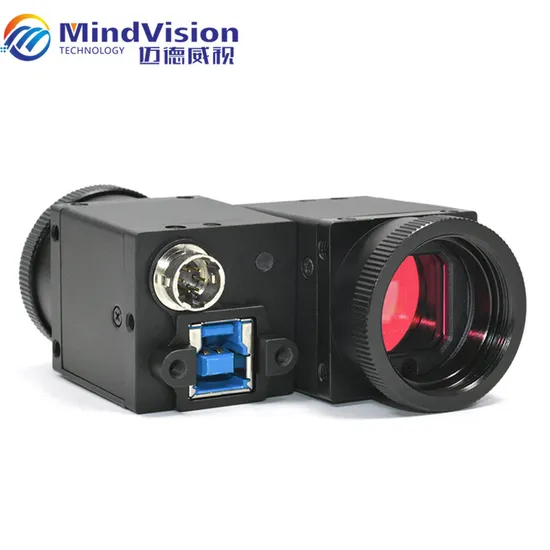

2.3MP USB3. O Industrial Camera for Machine Vision Mv-Sua231gc/M Detect Defects

Product Description

USB3.0 Series Features: Support external trigger sync taking pictures Programmable IO A computer to connect multiple cameras to stable work Support for 16bit grayscale and 48bit color lossless format output Camera parameter archive is saved as a file. Camera name can be modified to easily distinguish multiple cameras. With a maximum of 16K bytes of data storage. Support 8bit, 24bit, 32bit image format output. Product Paramenters

Product Item	Cmos Inspection Defect Detection Vision Inspection Machine Camera USB3.0 Industrial Camera For Machine Vision
Model Number	MV-SUA231GC/M
Pixel	2.3MP
Resolution	2448*2048
Frame Rate(fps)	40
Color	Monochrome/Color
Sensor	1/1.2" IMX249 Global Shutter CMOS
Pixel Size	5.86μm
Exposure Time(ms)	0.0201~42112
Pixel depth	12bit
Lens Mount	Default CS-Mouth
GPIO	1 trigger input, 1 flash control output, 1 GPIO output
Data interface	USB3.0 interface
Frame Buffer	128M Bytes
User-defined data area	2K Bytes
Power Requirements	5V
Dimensions	29*29*32.7(mm)
weight	75g
Operating temperature	0~50
Programming Language	C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python
Operating System	WINXP, WIN7 / 8/10 32 & 64-bit systems,Linux and ARM Linux &Android
Driver	DirectShow Halcon Labview OCX TWAIN
Other Functions	Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation,sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control

Product Optional Model

Global Shutter Optional

Model Number

Pixel

Resolution

Frame Rate

Sensor Size

Pixel Size

Minimum exposure time

MV-SUA33GC/M

0.3MP

640*480

790fps

1/5.6"

4.0μm

0.00124ms

MV-SUA34GC/M

0.3MP

640*480

431fps

1/4"

4.8μm

0.0045ms

MV-SUA50GC/M

0.48MP

800*600

118fps

1/3.6"

4.8μm

0.0098ms

MV-SUA133GC/M

1.3MP

1280*1024

245fps

1/2.7"

4.0μm

0.00194ms

MV-SUA134GC/M

1.3MP

1600*1200

211fps

1/2"

4.8μm

0.0045ms

MV-SUA200GC/M

2.0MP

1600*1200

60fps

1/1.8"

4.5μm

0.0157ms

MV-SUA202GC/M

2.3MP

1920*1200

165fps

2/3"

4.8μm

0.0039ms

MV-SUA230GC/M

2.3MP

1920*1200

165fps

1/1.2"

5.86μm

0.0049ms

MV-SUA231GC/M

2.3MP

2448*2048

40fps

1/1.2"

5.86μm

0.0201ms

MV-SUA501GC/M

5.0MP

2592*2048

40fps

2/3"

3.45μm

0.0133ms

MV-SUF402GC/M

4.0MP

2048*2048

88fps

1"

5.5μm

0.0054ms

MV-SUF890GC/M

8.9MP

4096*2160

32fps

1"

3.45μm

0.034ms

MV-SUF1200GC/M

12MP

4096*3000

23fps

1.1"

3.45μm

0.034ms

MV-SUF1205GC/M

12MP

4096*3072

28fps

1"

3.2μm

0.0113ms

Rolling Shutter Optional

Model Number

Pixel

Resolution

Frame Rate

Sensor Size

Pixel Size

Minimum exposure time

MV-SUA502C/M

5.0MP

2592*1944

59fps

1/2.5"

2.2μm

0.00124ms

MV-SUA630C/M

6.3MP

3088*2064

60fps

1/1.8

2.4μm

0.008ms

MV-SUA1000C/M

10MP

3664*2748

8fps

1/2.3"

1.67μm

0.054ms

MV-SUA1201C/M

12MP

4000*3000

32fps

1/1.7"

1.85μm

0.00102ms

MV-SUA1600C/M

16MP

4608*3456

12fps

1/2.3"

1.34μm

0.0233ms

MV-SUA2000C/M

20MP

5488*3672

19.5fps

1"

2.4μm

0.0138ms

MV-SUF1200C/M

12MP

4080*3072

30.5fps

1"

3.1μm

0.0201ms

If you don't know how to choose the model,Contact us,our engineers can recommend the suitable for you.

Product Naming Rules
Field	Meaning	Description
A	Brand name abbreviation	MV: Mindvision standard product Others: customized products
B	Product Series	SUA: High-speed version of USB3.0 industrial camera with frame buffer SUF :USB3.0 Industrial camera with medium Sensor size
C	Sensor code, the code name in the same class column cannot be repeated.	Area Scan: 500, 501, 502, 503 all represent 5 million pixels, The least significant bit is the index number. Line Scan: 80 and 81 both represent 8K cameras Thermal imaging: 120, 121 both represent 120,000 pixels
D	Sensor category	Blank or R: Rolling Shutter G: Global Shutter
E	Camera Color	M: Monochrome C: Color

Case Show FAQ Q. Can you provide SDK? A: Yes,we provide SDK,and it supports secondary development. Q.How to choose the color of industrial camera? A: If you do size measurement without detecting the color of the image, you can choose monochrome camera. Monochrome camera transmits a grayscale image, which is more conducive to size measurement.If you need to identify product chromatic aberration, such as comparison, a color camera is suitable for you. Q.How to choose the shutter of industrial camera? A: If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you. Q.How to take photos with multiple cameras simultaneously A:As long as the trigger source is the same, you can take pictures synchronously. Q What is the difference about CCD and CMOS? A: CCD has a better image quality than CMOS, but the price and power is higher.CMOS sensor has the characteristics of high sensitivity and high integration. Q What is the advantage of your industrial camera? A:We have 10 years of rich experience and have a core R&D teamOur products are more stable than peers. Q: Support after-sales? A:Yes,We support, any questions can contact us .

---
