Taiwan Jugang Mitsubishi High Precision CNC Vertical Machining Center with CE

Product Description

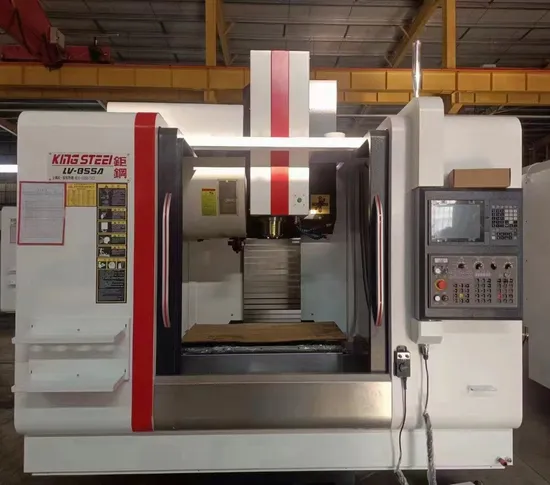

Model	LV-855A CNC machining center	MITSUBISHI M80A
Worktable	T-slot (Width x No. x Distance)	18mmx5pcsx90mm
	Max. loading weight	600kgs
Travel	X axis travel	850mm
	Y axis travel	550mm
	Z axis travel	550mm
	Spindle nose to worktable	105-655mm
Guide ways (HIWIN)	X linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
	Y linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
	Z linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
Screws(HIWIN)	X/Y/Z screw specific	4016/4016/4016 C3 grade
Spindle (JUGANG cooperation with Taiwan ROYAL/KENTURN)	Direct spindle speed	12000rpm
	Spindle motor power	7.5/11KW
	Spindle taper	BT40
	No. of front bearings	NSK 4 pcs
	No. of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	2/2/3KW
Feed	X/Y/Z feed speeds	48/48/48m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
	Max. tool dia. (Full)	80mm
	Max. tool dia. (Empty)	150mm
	Max. tool length	300mm
	Max. tool weight	8kgs
	T-T time	1.8sec
Working conditions	Electricity	3Ф380V,50HZ,20KVA
	Temperature	0-40ºC
	Relative humidity	≤90%
	Air pressure	5-6 bar and 0.2m³/min
Dimension& Weight	Approx. outer dimensions	2600x2550x2650mm
	Approx. weight	5000kgs

Standard configuration

1. Spindle oil chiller

2. Rigid Tapping

3. Automatic power off switch

4. 3 colors alarm light

5. LED working lamps *2pcs

6. Cooling system (cooling pump*2)

7. Automatic micro lubrication for linears and screws

8. Separate hand wheel (MPG)

9. Electric box heat exchanger

10. Fully enclosed sheet metal

11. BT40-24T arm type tool magazine

12. Tool kit

13. Around spindle coolant and compressed air

14. Leveling screws and pads

15. Compressed air blow out through spindle

16. Chips disc and water tank

17. Back flush chip conveying

18. Water gun and compressed air gun

19. Standard packing

20. 3 Axes screw and linear covers

21. Ethernet interface

22. USB and CF card interface

23. Transformer(Specification as requirement)

24. 10.4'' screen LCD

25. Oil skimmer

Our advantage:
1. The machine tool beds are all designed and produced by ourselves. The R&D team is from Taiwan and the machine quality is high. In order to obtain domestic policy support, we chose to produce in Zhangzhou, a Taiwanese investment area. The price will be much lower than that of Taiwanese machines.
2. The casting is made of HT300 and processed using the MEEHANITE process. After more than half a year of natural aging, artificial aging, vibration treatment, and internal annealing treatment, the casting has high stability and is not easy to deform; it is manually scraped to ensure accuracy.
3. We can produce five-axis machines. The machine accuracy reaches Acc. VDI 3441 Std. We have 6 bearings (4 in the front and 2 in the rear).
4. The controllers (FANUC, Mitsubishi, Siemens) and spare parts are all brands with the most stable and reliable quality in the world.
Files withe machines

1.QC report

2.Machine operation manual

3.Foundation drawing

4.Precision testing report

5.Machine circuit manual

6.Controller operation manual

Remark:
1. Delivery time: 30 days.
2. Payment terms: 30% T/T in advance, 70% after inspection before shipping.
3. Warranty: 12months for mechanical parts and 24 month for NC controller since customer receive the machine.
4. Installs debugs the personnel and days: 1-2 people in two days, depends on the customer's needs.
5. Engineer Travel, Installation and commissioning expenses: On buyer.

---
