Basic Info.
Application
Gantry Crane, Bridge Crane, Single Grinder Crane, Small Crane
Maximum Lifting Height
9m
Trolley Speed
20m Per Min
Transport Package
Wooden Case
Specification
1 ton to 20 ton
Production Capacity
500 PCS Each Month
Packaging & Delivery
Package Size
100.00cm * 70.00cm * 60.00cm
Package Gross Weight
110.000kg
Product Description
Product Description

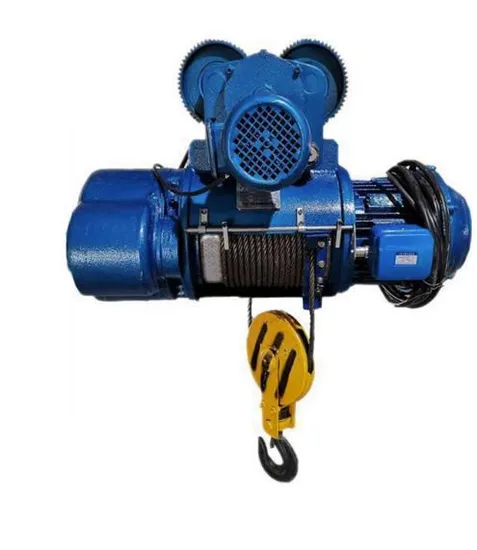

CD1 wire rope electric hoist is a light and small lifting equipment with compact structure, light weight,
small size, universal parts and easy operation.
Reducer: The reducer adopts hard tooth surface transmission design, long life and high mechanical
efficiency.
Motor: The motor uses a conical rotor brake motor. The motor load duration is 25%.
Motor protection: degree of protection: IP54
Insulation class: Class B
Limit: There are upper and lower two-way safety limit devices.
Push button switch: 36V safety voltage switch, according to customer needs, the hoist can be equipped
with a wireless remote control. Product Parameters
| Model | CD1-0.5 | CD1-1 | CD1-2 | CD1-3 | CD1-5 | CD1-10 |
| Capacity(ton) | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Lift height(m) | 6 | 6 | 6 | 6 | 9 | 9 |
| Lift speed(m/min) | 8m each min |
| Travel speed(m/min) | 20m each min |
| Sizes of Wire rope | 6×37-4.8 | 6×37-7.4 | 6×37-11 | 6×37-13 | 6×37-15 | 6×37-15 |
| Sizes of I-beam | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Power | 0.8Kw | 1.5Kw | 3Kw | 4.5Kw | 7.5Kw | 13Kw |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency(Hz) | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3M |
Detailed Photos
Packaging & Shipping
>>
