220VAC/24VDC/110VAC/380VAC on off Modulating Type Motorized Ball Valve/Electric Actuator Ball Valve Manufacturers

Product Description

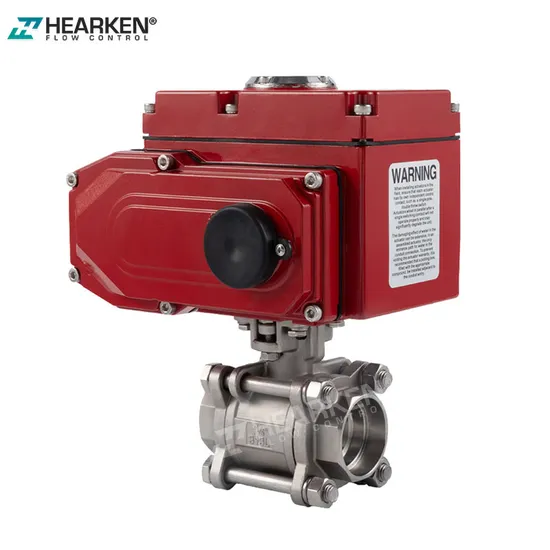

Three pieces electric actuated ball valve is an important actuator in industrial automation control system. The change of the valve seat port is proportional to the stroke of the valve disc. It is mainly used to cut off or connect the medium in the pipeline, and can also be used for the regulation and control of the fluid. It is a pipeline pressure element for industrial automation process control.Main Poduct Features:• Direct mount ISO5211 Full Port stainless steel ball valve
• 3-piece swing out body designed for easy maintenance
• 1000 PSI working pressure at 100°F (38°C)
• Visual valve position indicator
• Heavy duty motors with overload protection
• Thermostatically controlled anti-condensation heater
• Manual override with end of travel mechanical stops
• Two auxiliary limit switches included with on-o ffunits Performance Features:

Electric Actuator		Ball Valve
Function	On/OfffforModulating	Cap	CF8M,CF8,WCB
Housing	Aluminum alloy,epoxy powder coated	Gasket	PTFE	R-PTFE
Gear	Steel/aluminum bronze	Ball Seat	PTFE	R-PTFE
Screws	Stainles ssteel	Ball	SS316	SS304
Indicator Cover	Polycarbonate	Thrust Washer	PTFE	R-PTFE
Shaft/Adaptor	Alloy steel	O-Ring	VITON
Seal	NBR	Stem Packing	PTFE	R-PTFE
Lubrication	Aluminum based grease	Gland	SS304
Power Supply	24VDC,110VAC,220VAC	Spring Washer	SS304
Motor	Squirrel cage asynchronous motor	Stop Nut	SS304
Limit Switch	SPDT,250VAC 10A,each for Open and Close positions	Stop Washer	SS304
Rotation	90°(±10°) other rotation on request	Gland	SS304
Manual Operation	Mechanical handle standard	Handle	SS304	SS201
Conduit Entry	2xM18	Stem Nut	SS304	SS201
Operating Temp	-20°C to+70°C	Body	CF8M,CF8,WCB
Ambient Humidity	Max.90%RH	Pin	SS201
Vibration Tested	XYZ10g,0.2~34Hz,30minutes	Anti-Static Device	SS316	SS304
Mounting	ISO5211	Stem	SS316	SS304
Torque Output	30Nm to1000Nm (2000Nm on request)	Locking Device	SS316	SS304
Self-locking device	Self-locking by worm and worm gear	Handle Cover	PLASTIC

Technical Parameter and Specifications (On/Off or Modulating Version)

Model	Max Output Torque(N.M)	Operating Time 90°(Sec.) 220VAC/24VDC	Drive Shaft(mm)				Motor(W)220V/24VDC	Single-phsaerated current(A)220VAC/24VDC	Weight(kg)
			Square	Deep	Round	Deep
HEA003	30N.m	10/10	9X9	13.5	Ø12.6	26	8	0.3/2	2.1
			11X11	15.5
HEA005	50N.m	30/15	11X11	15.5	Ø12.6	26	10	0.24/2.4	3.6
			14X14	18
HEA008	80N.m	30/15	11X11	15.5	Ø15.78	26	10	0.25/2.5	3.6
			14X14	18
HEA010	100N.m	30/15	14X14	18	Ø15.78	28	15	0.35/3.5	4.6
			17X17	22.5	Ø18.95
HEA015	150N.m	30/15	14X14	18	Ø18.95	28	15	0.37/3.5	4.6
			17X17	22.5
HEA020	200N.m	30/15	22X22	26	Ø22.13	45	45	0.48/6	8.9
HEA040	400N.m	30/15	22X22	26	Ø28.48	45	60	0.5/6	8.9
HEA060	600N.m	30/15	27X27	32.5	Ø31.65	45	90	0.92/9	9.9
HEA080	800N.m	45/22	27X27	32.5	Ø31.65	45	180	1/12	14.3
HEA100	1000N.m	45/22	27X27	32.5	Ø31.65	45	180	1/12	14.5
HEA200	2000N.m	45/22	27X27	32.5	Ø31.65	45	200	1.5/15	14.5

1. Question:What is your main products? Answer:Our main products are Pneumatic Actuators, Electric Actuators, Actuated Valves And Valve actuators Accessories..
2. Question:Are you a trader or manufacturer ? Answer: We are the pneumatic actuators and electric actuators manufacturer , we have ability to do the customization products with experienced team, And we have own factory and production line.
3. Question:How do your make the quality guarantee for actuators? Answer:We have our own quality control system for incoming and outgoing of the materials, every product will be under controlled and tested before delivery to our customer , and we also provide 18 months guarantee ,beside we provide technical supporting .
4. Question:When can I receive the Price of valve actuators ? Answer:We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call or message us if it's quite urgently.
5. Question:How to order our pneumatic actuators and electric actuators ? Answer:Please send us your inquiry by Email, whatsapp, wechat etc. we need to know the following informations before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements
2) Delivery time required
6. Question:How can I get a sample to check your quality? Answer:Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
7. Question:Shall we pay the sample cost and transportation cost ? Answer:We will provide the sample by free of charge. Your will bear the freight cost.
8. Question:How long to prepare the sample ? Answer:Most of our products are under regular production and some of them we keep in stocks.
9. Question:How to delivery the sample to our place? Answer:Your can provide your forwarders contacts if any, or we will arrange it for you.
10. Question:What about the delivery date if we place the formal order ? Answer:Usually it takes 15~20days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time all the time.

---
