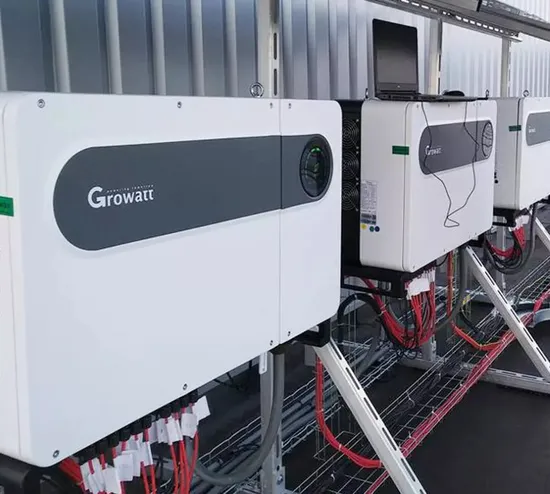

Growatt Inverter 110kw 125kw 120kw on Grid Solar Inverter Max 110ktl3-X Max 120ktl3-X

Product Description

Product Description

Specification

Datasheet	50K	60K	70K	80K	100K	110K	120K	125K
Input data (DC)
Max.DC voltage	1100V
Start voltage	250V				195V
Nominal voltage	585V	585V	600V	600V	600V	600V	600V	600V
MPPT voltage range	200V-1000V				180V-1000V
No. of MPP trackers	6	6	7	7	10	10	10	10
No. of PV strings per MPP tracker	2
Max. input current per MPP tracker	26A				32A
Max. short-circuit current per MPP tracker	32A				40A
Output data (AC)
AC nominal power	50000W	60000W	70000W	80000W	100000W	110000W	120000W	125000W
Max. AC apparent power	55500VA	66600VA	77700VA	88800VA	110000VA	121000VA	132000VA	137500VA
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)				230V/400V(340-440VAC)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	80.5A	96.6A	112.7A	128.8A	158.8A	174.6A	190.5A	198.5A
Adjustable power factor	0.8leading ...0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	98.80%	98.80%	99%	99%	98.80%	98.80%	98.80%	98.80%
European efficiency	98.40%	98.40%	98.50%	98.50%	98.50%	98.50%	98.50%	98.50%
MPPT efficiency	99.90%
Protection devices
DC reverse polarity protection	Yes
DC switch	Yes
DC surge protection	Type II / Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
String monitoring	Yes
AFCI protection	Optional
Anti-PID function	Optional
General data
Dimensions (W / H / D)	860/600/300mm				970/640/345mm
Weight	82kg	82kg	86kg	86kg	84kg	84kg	84kg	84kg
Operating temperature range	-25°C ... +60°C				-30°C ... +60°C
Self-consumption	<1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP65				IP66
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Cable gland+OT terminal				OT Terminal (Max. 240mm²)
Display	LED/WIFI+APP
Interfaces: RS485 / USB /WiFi/ RF/GPRS	Yes/Yes /Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes /Optional

Product Detail
Packing & Delivery Company Profile
Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar cells modules and 60,000 sets of solar power systems. 00:00 00:2Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar FAQ Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.

---
