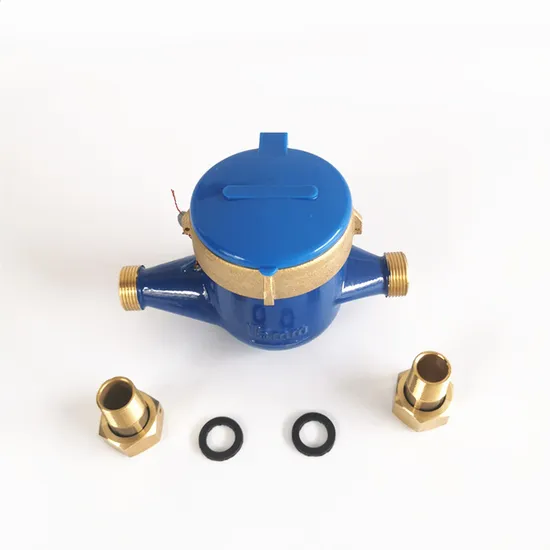

Multi-Jet, Vane Wheel, Dry-Dial Brass Water Meter DN15-50

Product Description

LXSG-15M~20M
Multi-jet, vane wheel, dry-dial water meter
( with eight number wheels)
Application:
--Measuring the total volume of cold portable water passing through the pipeline.
Feature:
--Multi-jet, dry-dial, easy for maintenance;
--Magnetic drive reliable characteristic, long working life;
--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;
-- Technical data conform to international standard ISO4064 Class B.
Working condition:
Water temperature: 0.1ºC~50ºC for cold water meter .
0.1ºC~90ºC for hot water meter.
Water pressure : ≤1.0-1.6Mpa.
Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Hot water meter ±3%. MAIN TECHNICAL SPECIFICATIONS

Type	Size (mm)	Class	qs Overload Flow	qp Permanent Flow	qt Transitional Flow	qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSG-15M	15	B	3	1.5	120	30	0.00005	99,99,999
LXSG-20M	20	B	5	2.5	200	50	0.00005	,99,99,999

DIMENSIONS

Type	Size	L Length	B Width	H Height	d Connecting Thread
	mm
LXSG-15M	15	165	89	98	G3/4B
LXSG-20M	20	190	89	98	G1B

LXSG-15M-20M MULTI-JET, VANE WHEEL, DRY-DIAL WATER METER
Code	Description	Material	QTY
1	Lid	HDPE	1
2	Hinge Pin	Stainless	1
3	Cap	Brass	1
4	Sliding Gasket	PP	1
5	Glass Fixing Ring	ABS	1
6	Glass	Tempered Glass	1
7	O-ring	Silicon Rubber	1
8	Register Fixing Ring	ABS	1
9	Register	Assembly	1
10	Central Gear	Component	1
11	Magnetic Shield Ring	Iron	1
12	Gearing box	ABS Plastic	1
13	Tightening Gasket	Rubber	1
14	Turbine Component	Component	1
15	Measuring Chamber	HIPS	1
16	Bottom Strainer	LDPE	1
17	Body	Brass	1
18	Adjusting Screw	POM	1
19	Adjusting Gasket	Nylon	1
20	Adjusting Plug	Brass	1
21	Inlet Strainer	PP	1
22	Coupling Gasket	Rubber	2
23	Coupling Tail Piece	Brass	2
24	Coupling Nut	Brass	2

---
