JP90-400 Travelling Hard Hose Reel Sprinkler Irrigation Machine for 4-8 hectares Farm Irrigation System

Product Details

Product Description

Product Description
Technical Specifications

No.	Item	Unit	JP75-300	JP75-400	JP75-500	JP90-300	JP90-400	JP90-450
1	PE pipe diameter	ϕmm	75	75	75	90	90	90
2	PE pipe length	m	300	400	500	300	400	450
3	Inlet working pressure	Mpa	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0
4	Nozzle pressure	Mpa	0.25-0.5	0.25-0.5	0.25-0.5	0.4-0.6	0.4-0.6	0.4-0.6
5	Nozzle diameter	ϕmm	16-22	16-22	16-22	20-26	20-26	20-26
6	Nozzle flow rate	m3/h	13-38	13-38	13-38	17-52	17-52	17-52
7	Rain gun range	m	27.6-43	27.6-43	27.6-43	35-52	35-52	35-52
8	Spray width	m	47-74	47-74	47-74	60-90	60-90	60-90
9	Interlayer velocity difference	%	<20	<20	<20	<20	<20	<20
10	Precipitation	mm	8-50	8-50	8-50	8-50	8-50	8-50
11	Nozzle type	/	PYC50	PYC50	PYC50	PYC50	PYC50	PYC50
12	Nozzle cart wheel distance	mm	1,300-2,800	1,300-2,800	1,300-2,800	1,300-2,800	1,300-2,800	1,300-2,800
13	Nozzle cart height	mm	1,300	1,300	1,300	1,300	1,300	1,300
14	Cart climbing grade	%	20	20	20	20	20	20
15	Traction height	mm	300-500	300-500	300-500	300-500	300-500	300-500
16	Ground clearance	mm	300	300	300	300	300	300
17	Chassis tires & rims	/	185R 14c	185R 14c	185R 14c	10.0/80 -12	10.0/80 -12	10.0/80 -12
18	Maximum under-wheel width	mm	2,000	2,000	2,000	2,310	2,310	2,310
19	Control travelling speed	m/h	8-60	8-60	8-60	8-60	8-60	8-60
20	Combined spray uniformity	%	≥85	≥85	≥85	≥85	≥85	≥85

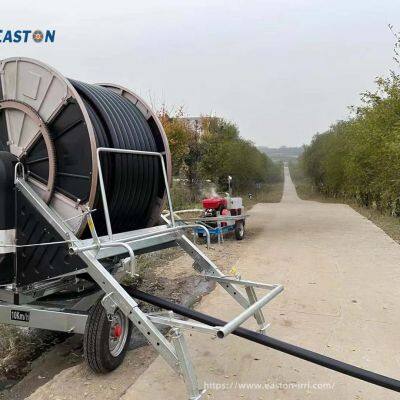

Travelling Hose Reel Sprinkler Irrigation Machine
JP series hose reel sprinkler irrigation system, driven by water turbine, combined Italian CASELLA impact turbine direct-connected four speed gearbox technology, used Italian original four speed direct-connected gearbox, with the chassis and frame are crafted from outstanding corrosion resistance and high strength 304 stainless and treated with the hot-dip galvanizing process, specially designed for efficient agricultural farming irrigation.
It is an irrigation equipment with its 1.6Mpa pressure PE pipe winded around the winch. It uses irrigation pressure water to drive water turbine which drives winch to rotate through the transmission and the winch pulls sprinkler cart to achieve automatic travelling and spray.
We designed the turbine to be connected directly to the gearbox, this keeps the pressure absorption to a minimum, allowing the machine to run more smoothly.
Travelling hose reel sprinkler irrigation machine are available in a range of models, including JP75-300, JP75-350, JP75-400, JP75-450, JP75-500, JP90-300, JP90-350, JP90-400, JP90-450. They are easy to move and can cover large areas, making them suitable for different field sizes.
It is widely used in large and medium scale farmland operation irrigation, garden, urban green space, fruits and vegetables, tea, forage, tobacco, sugar cane, and power plants, wharf, construction sites, coal dust removal and other fields. Whether you’re searching for Orchard or agricultural farming land dedicated travelling reel type sprinkler irrigation machine, detailed explanation of the working principle of folding travelling boom sprinkler irrigation machine or how to choose the right center pivot irrigation system for your farming land, Easton Irrigation Machinery company has got you covered.

---
