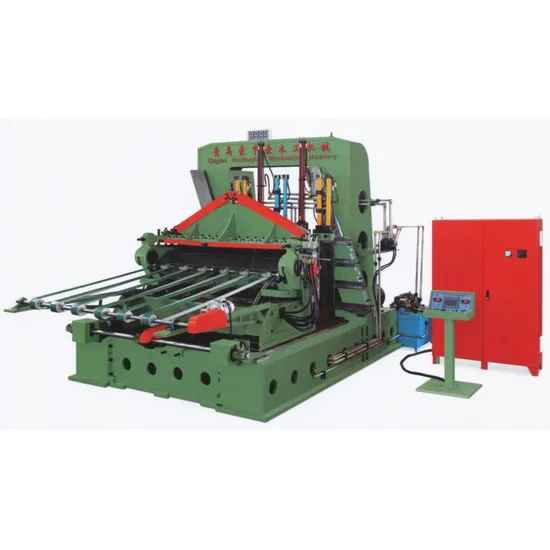

Automatic Woodworking Slicing Engineer Wood Log Machine Vertical Slicer

Product Description

We supply high quality BB1326T BB1332T Vertical Veneer Slicer Product Show
1.Product Show
Product Description
2.Product Description

Model	BB1326T	BB1332T
Max cutting size	2400*600*500mm	2900*600*500mm
Blade size	2600*200*19mm	3200*200*19mm
Veneer thickness	0.4-5mm	0.4-5mm
Slicing speed	15-40pcs/min	15-40pcs/min
Clamping methods	Auto & manual	Auto & manual
Total power	44.3Kw	51.3Kw
Main motor	30kw	37kw
Blade feeding motor	7.5kw servo motor	7.5kw servo motor
Hydraulic pump motor	5.5kw	5.5kw
Circulating heat water motor	0.75kw	0.75kw
Conveyor motor	0.55kw	0.55kw
Overall size	7000*4000*4000mm	7000*5000*4000mm
Weight	23T	26T

Installation Instructions
3.Main Introduction
1.This machine subverts the concept of only sawing and longitudinal slicer can make thicker veneer in the past and breaks through the thinking style of wood processing and obtains the invention patent of new national product so as to provide reliable guarantee for the high and efficient timber processing.
2.The main motor DC motor, the controller uses Scheniders and with energy-saving devices.
3.To guarantee precise veneer thickness, we use ball screw with servo motor.To avoid veneer scratch we used auto blade back system
4.Use hvdraulic system, log clamping become more convenient for operator and improves efficiency
5.Control cabinet combines electric and hydraulic system, make it easy forsingle operator
6.Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
7.Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
8.Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed.
Detailed Photos
4.Product Details
Company Profile
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sanding machine.en.made-in-china.com; you could get more information about our company and our products.

---
