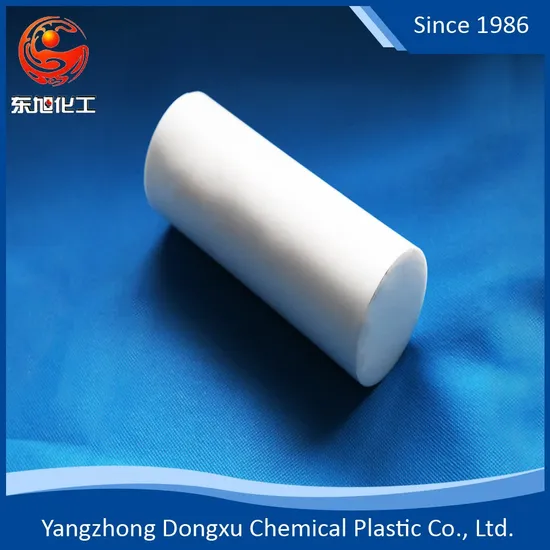

PTFE Extruded Rod 100% Virgin Material Factory Supplier

Product Description

Specification of PTFE Rod
PTFE rod can be manufactured by three kinds of process. The rod can be made by paste extruded, plug extruded, and molded.

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000
210, 220, 230, 240, 250, 260, 270, 280, 300	300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000
Molded Rod	5~500	10~300

There are many specifications are in stock.The data is too much, it's not convenient to list here.
And special specifications can be customized.
If you have any confuse, please contact us. We will reply you as soon as possible.
Properties

ITEM	Data	Data Unit
Apparent density	2.10-2.30	g/ cm3
Tensile Strength	≥20	Mpa
Elongation at break	≥200	%
Working Temp	-180~260	ºC
Melting point	330	ºC
Produce Max.Temp	390	ºC
Compressive strength 1% deformation	400-500	%
Hardness	50-60	shoreD

PTFE Rod Parameter
Properties	PTFE extruded rod	PTFE moulde rod
1.Working temperature:-180~+260°C	Diameter:1-200mm	diameter: 6~500mm
2.Melting point:327°C
3.Yield strength: 23MPa	Length:1000-5000mm	length: 100-500mm
4.Density: 2.2 g/cm3
5.Coefficient of friction<0.10	Density:2.21g/cm3	density:2.22g/cm3
6.Strong chemical-resistant
Features:	1.Use virgin or part recycled ptfe resin to make
	2.The size :diameter 4mm~350mm,length 1~5m
	3.tolerance :0~+0.2mm
	4.Color:natural white,red,yellow,black and so on.
	5.Surfact:smooth,no impurities,no black spot.
	6.Perfect package :inside is plastic paper ,outside is fumigation wooden box.
	7.Delivery time is usually 10days,as can according to the fact quantity to deliver
	8.Density:2.10~2.30g/cm³
	9.Tensile strength :20Mpa
	10.Crack elongation:200%

Company Profile
Yangzhong Dongxu Chemical Plastic Company since its establishment in 1986,has been rated as ''Heavy contract,and trustworthy with the enterprise"! Company has advanced production testing equipment,rich experience,the staff be trained with regularity team;raw materials and adequate product inventory for customers to provide timely sealing products and a professional and technical engineers to provide comprehensive Technical support.
Company to ISO9001 quality system authentication enterprise as the standard,the enterprise quality assurance system more perfect,Yangzhong Dongxu chemical plastic Company Limited will be the spirit of sincere cooperation,advanced enterprise management,strict the style of work,and you work together,create brilliant!

Payment and Delivery
Our Service
1. Providing technical consultation.
2. Samples are free.
3. Special packaging according to request.
4. Providing related qualification documents.
5. We could customize various products with your brand logo according to your requirements.
6. Solving the quality matter on production line.
7. Solving customer's complaints in time .
10.We make full inspection during the production, and we also make sampling test before delivery.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.

---
