High Performance CNC Gantry Boring and Milling Machine for Boring Processes

Product Description

Product Description
Main characteristics of machine tool
TK42 series fixed beam gantry CNC milling machine for high-speed steel, carbide cutting tools, ferrous metals, nonferrous metals and some non-metal parts for roughing and finishing, can be a variety of board, disk type, box type , rack, pedestal, column and other high precision machining of large parts for CNC machining. After a workpiece clamping, automatic completion of milling, drilling, boring, reaming and tapping and other machining processes.The case of mounting accessories milling ram in the lower side, the workpiece can achieve five-sided machining.
The ram I is an all inclusive ram structure. The Z-axis guide rail pair adopts the sliding guide rail pair in the form of guide rail quenching and plastic pasting.
The front bearing of the main shaft of the ram boring and milling head adopts group bearings, so that the main shaft has high precision, high load and low temperature rise. It can not only withstand large power and large torque cutting, but also has high precision and life of the main shaft.
The drive motor and spindle motor of the three coordinate axes adopt imported AC servo motor and AC spindle motor Each coordinate axis is controlled in a semi closed loop by an encoder. According to the customer's requirements, grating can be used to achieve full closed loop control to improve the accuracy and accuracy retention of the machine tool.
The machine tool can be configured with various accessory milling heads (optional by users) to realize five side machining.
Product Parameters

Project	unit	TK4216	TK4220			TK4225			TK4230
Table size -width	mm	1600	2000			2500			3000
Table size -Length	mm	3000	4000 6000			6000 8000			8000 10000
CNC system		SIEMENS-840DSL or FAUNC
grating		Spain FAGOR or HEIDENHAIN
Width of gantry	mm	2200	3200			3700			4200
table stroke(X)	mm	3500	4500	6500		6500	8500		8500	10500
Travel of carriage on beam(Y)	mm	2700	3200	4000		4000	4200		4400	4800
Vertical stroke of spindle(Z)	mm	1250	1250			1500			1500
Square ram size	mm	400x400	400x400			500x500			500x500
Distance from spindle end face to workbench	mm	250-1500	950-2200			750-2250			750-2450
Main motor power	kW	22/33	22/33			37/51			37/51
Spindle speed	r/min	20-2000	20-2000			10-2000			10-2000
Maximum output torque of main shaft	Nm	1000	1000			2000			2000
spindle taper	BT	50
Machine tool accuracy (with grating)	Positioning accuracy and repeated positioning accuracy		X/Y/Z-axis shall be implemented according to GB/T19362.1/2003
rapid traverse X	m/min	8
rapid traverse Y	m/min	8
Worktable bearing	Kg/m2	1500	2000
Guide rail form		Schneiberg or THK or HIWIN
		Square ram sliding guide rail
Ball screw		Germany Yifu or THK
gas supply	MPa	0.6
Machine weight	t	52	55		82	110		135	160		180

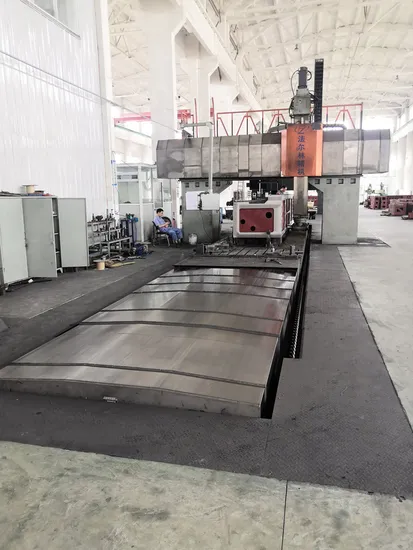

Detailed Photos


Recommended products

Company Profile
1.General Information
Changzhou Faer Lin Precision Machine Co., Ltd. is located in Bingjiang economic development zone, new north district, Changzhou , Jiangsu, China. The whole plant area is 30006m2 with 15000m2 construction area.
Our business grows dramatically during the past 5 years that the sales revenue develops from RMB 5 million in 2012 to RMB 50 millions around in 2016.
The company was evaluated as Jiangsu high-technology enterprise in 2015, that we have 22 high-technology products and more than 20 patented technologies.
Faer Lin is dedicated to build first-class technology developing system and train a expert team, in order to produce reliable automatic line and CNC special machine with high accuracy and high efficiency.
2.Company Team
Our shareholders and management team members are excellent talents from Jiangsu Duoleng CNC machine Co., Ltd.(Former was Changzhou General Machine Factory) who has more than ten years good experience in state-owned company management, product design, sales, R&D, manufacturing process and production. These excellent talents ensure we can have smooth and health development. Currently, we have 70 employees, 2 of them are certified with senior professional title, 21 with medium-grade professional title and 25 with junior professional title. It helps us to have capability to develop and manufacture first-class CNC machine and special machine.
We run and manage the company according to joint-stock company requirement since it was founded. We have clear and reasonable organization, which make sure our company operate efficiently and smoothly.
Certifications
FAQ
1.MOQ
1 set
2.DELIVERY TIME
It depends on the machine and model you choose.All machines are 100% new and not used.
3.How can I choose the most suitable machines?
Please tell me the machine type or parameter you are interested in, we can quote you the best price.You can also tell us the materials and size of the workpiece, or send us product pictures that you will process, we will choose the most suitable machine for you.
4.Do you provide after-sales service?
Of course. One-year warranty.
5.Are you a factory or trading company ?
We are a manufacturer factory
6.Why choose cooperate with us ?
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;
7.How does your factory do regarding quality control ?
Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.

---
