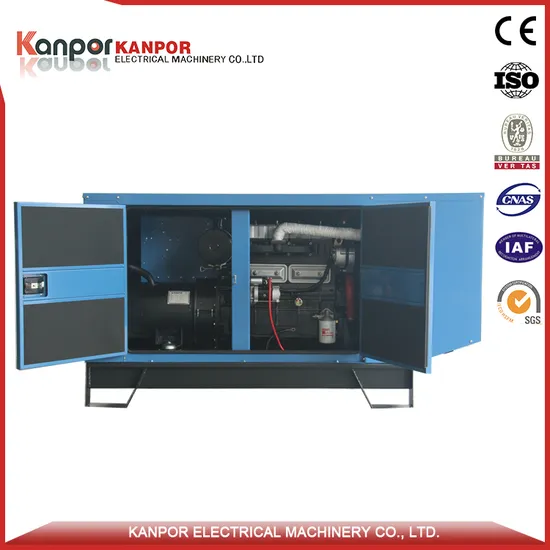

Cummins 20-2000kVA Diesel Generator with Global Warranty

Product Description

1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION

Technical Data
Genset Model		KPC25	KPC27.5	KPC33	KPC40
Rated Power	KW/KVA	18/23	20/25	24/30	30/38
Standby Power	KW/KVA	20/25	22/27.5	27/33	32/40
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		4B3.9-G1	4B3.9-G1	4BT3.9-G1	4BT3.9-G1
Engine Power	KW	27	27	40	40
Air intake way		Natural	Natural	Turbo	Turbo
Governor		Mechanical	Mechanical	Mechanical	Mechanical
Cylinder	QTY	4	4	4	4
Bore*Stroke	mm*mm	102×120	102×120	102×120	102×120
Displacement	L	3.9	3.9	3.9	3.9
Fuel Consumption	g/kw.h	228	228	214	214
Compression Ratio		16.5:1	16.5:1	16.5:1	16.5:1
Alternator Model		STF-184E	STF-184F	STF-184G	STF-184H
Voltage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	1710x700x1340	1710x700x1340	1800x700x1340	1800x700x1340
Open Type Weight	kg	800	830	900	920
Soundproof Size	mm	2100x1000x1200	2100x1000x1200	2100x1000x1200	2100x1000x1200
Soundproof Weight	kg	1100	1150	1200	1280

Technical Data
Genset Model		KPC1375	KPC1500	KPC1650	KPC1718
Rated Power	KW/KVA	1000/1250	1100/1375	1200/1500	1250/1560
Standby Power	KW/KVA	1100/1375	1200/1500	1320/1650	1375/1718
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		KTA50-G3	KTA50-G8	KTA50-GS8	KTA50-G9
Engine Power	KW	1227	1429	1429	1656
Air intake way		Turbo	Turbo	Turbo	Turbo
Governor		Electronic	Electronic	Electronic	Electronic
Cylinder	QTY	16	16	16	16
Bore*Stroke	mm*mm	159×159	159×159	159×159	159×159
Displacement	L	50.3	50.3	50.3	50.3
Fuel Consumption	g/kw.h	197	205	204	203
Compression Ratio		13.9:1	14.9:1	14.9:1	13.9:1
Alternator Model		STF-634G	STF-734B	STF-734B	STF-734C
Voltage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	4850x2000x2320	4980x2000x2350	4980x2000x2350	5200x2150x2400
Open Type Weight	kg	7800	8200	9500	10000
Soundproof Size	mm	6000x2200x2600	6000x2200x2600	6000x2200x2600	7000x2300x2650
Soundproof Weight	kg	9800	10800	12300	13600

3. PRODUCT FEATURES
(1) Full control panel with power indicator light and oil light.
(2) Emergency shutdown for low oil pressure and high water temperature.
(3) Large fuel tank ensure continuous running.
(4) Low noise & vibration.
(5) Compact structure.
(6) Reliable performance.
(7) Easy for installation and maintenance.
(8) 50Hz and 60Hz both are available for choice

---
