Sino Truck HOWO 5tons LPG Filling Transport Truck LPG Tank Truck LPG Refilling Truck

Product Description

Sino Truck HOWO 5tons LPG Filling Transport Truck LPG tank truck LPG refilling truck
1)LPG filling truck volume
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l
2)LPG filling truck material
Q345R Q370R SA516
3)LPG filling truck introduction
LPG filling truck also called LPG refilling truck, LPG gas tank truck, LPG transport truck, LPG tanker truck,LPG truck with refilling function,cooking gas filling truck.It use for LPG gas cylinder, LPG cars for LPG filling.
4)Main parts of lpg bullet tanks
pump, motor, flow meter, lpg dispenser
Our LPG filling truck Advantage
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified. arameter for quick reference

8000l LPG truck
Filling gas						LPG (propane)
Design Specific Gravity						0.42 Kg/L
capacity						8000l
External Dimensions (length*width*height)						7500x2230x2750
Tank dimension (length*diameter)						L4266xD1600mm
tank weight (nominal)						2540kg
max payload weight						3192kg
tank material						Q345R
Tank body design thickness						8mm
End cover design thickness						8mm
design temperature						50 0C
working temperature						-20~50 0C
Corrosion allowance						1.0 mm
design pressure						1.77 MPa
Hydraulic test pressure						2.22 MPa
leak test pressure						1.77 MPa
Heat treatment type						Wholly get rid of tress
Main parts specification
Lpg gas pump (YQB15-5)	Flow (m³/h)		15.5
	Inlet pressure (MPa)		≤2.0
	outlet pressure difference (Mpa		0.5
	Pump rotate speed (r/min)		780
	motor power (KW)		5.5
	Inlet aperture (mm)		50
	Outlet aperture (mm)		50
	Temperature rangeºC		-40~40
	Weight(kg)		108
Explosive-proof motor	7.5HP(5.5KW), Explosive Proof,
	Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable
LPG cylinder filling machine	Model				BSC-150
	Electricity voltage V				AC220
	Power(w)				40
	Weighting scale				Can fill 0.5kg to 150kg LPG cylinde
	Measurement Precision				±0.5%
	Rated Working Pressure				1.6Mpa
	Temperature range ºC				-40~40
	Anti-explosion Rate				Exhibit II BT4

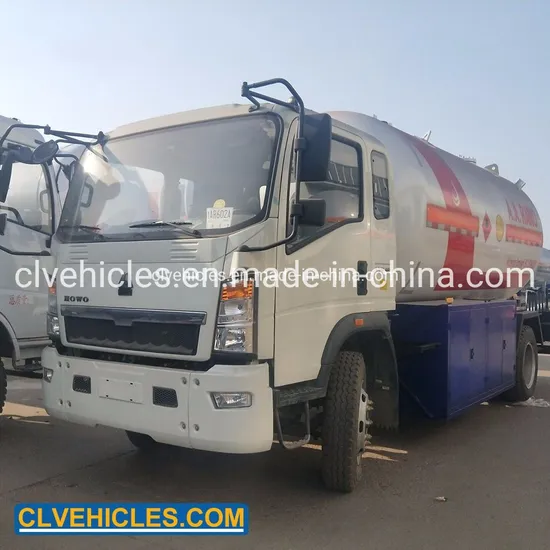

LPG Gas Refilling truck detail show
FAQ
1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price. 2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
Our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport. And if need the invitation letter ,pls send your private information and company information to me. THANKS FOR REFERENCE

---
