Metal Plate Edge Milling Beveling Machine Exclusive Launch of Wireless Remote Control

Product Description

FEATURES AT A GLANCE

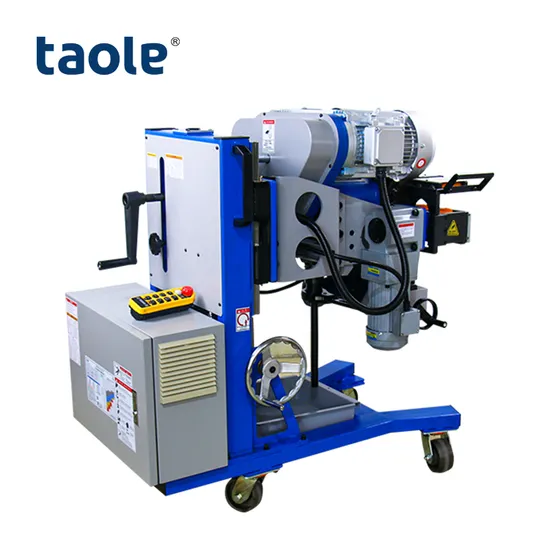

GMMA-80RY is a new product,exclusive launch of wireless remote control plate beveling machine,specially for heavy duty metal sheets for fabrication preperation. It is available for plate thickness 6-60mm, bevel angel 0 to 60 degree for vary type of welding joint such as V/Y,X/K, 0~±60 degree. Max bevel width could reach 70mm Specifications.
PRODUCT SPECIFICATIONS

Models	GMMA-60S	GMMA-60L	GMMA-80A	GMMA-80R	GMMA-100L
Power Suppy	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ
Total Power	4520W	4520W	4920W	4920W	6520W
Spindle Speed	1050r/min	1050r/min	500~1050r/min	500-1050mm/min	500-1050mm/min
Feed Speed	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~1500mm/min
Clamp Thickness	6~60mm	6~60mm	6~80mm	6~80mm	6~100mm
Clamp Width	>80mm	>80mm	>80mm	>80mm	>100mm
Clamp Length	>300mm	>300mm	>300mm	>300mm	>300mm
Bevel Angel	0~60 degree	0~90 degree	0~60 degree	0~±60 degree	0~90 degree
Singel Bevel width	0-20mm	0-20mm	0-20mm	0-20mm	15-30mm
Bevel Width	0-45mm	0-60mm	0-70mm	0-70mm	0-100mm
Cutter Diameter	Dia 63mm	Dia 63mm	Dia 80mm	Dia 80mm	Dia 100mm
Inserts QTY	6 pcs	6 pcs	6 pcs	6 pcs	7 pcs
Worktable Height	700-760mm	700-760mm	700-760mm	700-760mm	810-870mm
Suggest Table Height	730mm	730mm	730mm	730mm	830mm
Worktable Size	800*800mm	800*800mm	800*800mm	1200*800mm	1200*1200mm
Clamping Way	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping
Machine Height Adjust	Hydraulic	Hydraulic	Hydraulic	Handwheel	Handwheel
Machine N.Weight	200 kgs	225 kgs	245 kgs	310 kgs	420 kgs
Machine G Weight	255 kgs	260 kgs	280 kgs	380 kgs	480 kgs
Wooden Case Size	800*690*1140mm	950*700*1230mm	800*690*1140mm	1100*630*1340mm	950*1180*1430mm

Exhibition And Certificate

Machine Packing

SPC.	Clamp Thickness/MM	Machine N.Weight	Machine G Weight	Wooden Case Size
GMMA-60S	6~60mm	200KG	255KG	800*690*1140mm
GMMA-60L	6~60mm	225KG	260KG	950*700*1230mm
GMMA-80A	6~80mm	245KG	280KG	800*690*1140mm
GMMA-80R	6~80mm	310KG	380KG	1100*630*1340mm
GMMA-100L	6~100mm	420KG	480KG	950*1180*1430mm

Successful Project
Aluminum plate processing
Copper plate processing
SIMILAR PRODUCTS

OCE/OCP
-Cold Cutting and Beveling improves safety
-Cutting and Beveling simultaneously
-Split Frame design for easy mounted on pipeline
-Tools feed automatically optional
-Machining heavy-wall pipe from 1'' up to 72''
-Optional tools for suitable for
multi pipe materials with vary wall thickness
ISE/ISP -Work capacity from size ID18-820MM
-Wall thickness <=15mm-75mm
-The groove angle can be arbitrarily selected between 0°-45°
-Explosion Proof
-Stable Performance
-Simple structure makes easy to miantence
-Occasionally overload won't burn
ST-40
-Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.-Unique design for with dust collection to reduce human harm.-Easy adjust on bevel angel and tungsten diameter and portable design.-High Precision on surface to improve welding quality.

FAQ
Q: Are you manufacture?
A: Yes. We are China manufacture. Our main products including ergonomic pallet strapping machine system,battery powered strapping tools and carts, pneumatic strapping tools for steel and pet bands.
Q: What is your deliver Time?
A: Standard machine can be ready in 3-7 days. Customized machine will be 25-45 days.
Q: What about payment terms?
A: We will suggest 100% by T/T while amount less than USD 10000 while machine ready in few days. 50% deposit, 50% balance for bigger amount or customizedprojects.
Q: What about your after sales service?
A: It is a simple machine tools on operation and we have English manual with machine.Machine can direct use after your receive it. In furhter any problems. We can provide video and remote service by Email,Phone and supply with necessary spare parts etc. Thank you.

---
