High Quality Factory Price Waste Mechanical Minerals Sorting Circular Vibrating Screen

Product Description

Detailed Photos

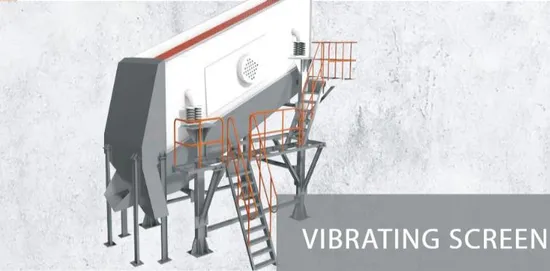

YA series circular vibrating screen is specially designed for sorting construction waste and fine material. It can also be used for product classification in coal preparation, mineral preparation, building materials, electric power and chemical industry.The output and energy consumption of the vibrating screen are up to the national standard, ranking the advanced level at home and abroad, and being well received by customers in all industries.This model has long material flow line, many screening specifications, clear screening of all specifications, high screening efficiency, not easy to block.
Working Principle
When it's working,the motor rotates the exciter eccentric block at high speed through the v-belt.The eccentric block in operation generates a large centrifugal force, which stimulates the circular movement of the screen ubit with a certain amplitude. The material on the screen unit is subjected to the impulse passed by the screen unit on the inclined screen surface and produces a continuous throwing movement. When the material meets the screen surface, the particles smaller than the screen hole are screened through, so as to realize separation.

Product Parameters
FeaturesThe advanced rivet connection frame structure improves the service life of the equipment.he spring damper reduces the impact on the machine body.High screening efficiency,least blockage.Low noise,easy to maintain.

Model	3YA2160
Screen unit size	2100×6000 mm
Screen hole size	10 mm
Motor	Y200L-4
Power	15KW
RPM	730r/min
Throughput	81-720m³/h
Screen layers	3
Screen angle	20°

Main Products
Mechanical Sorting Machine
Mechanical Shredding Machine
Mobile Machine
Company Profile
JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association.
First stage plant covers and area of 27000 square meters, whose floor area is 34000 square meters and the overall investment is 100 million RMB. on March 18, 2015, the construction work was started. it is equipped with technology institute, science and technology demonstration hall, pilot test and industrial centeer, large-scale material test center, high- standard manufacturing factory.
Jono has a complete and professional group of teams of research and development design, project management, equipment manufacturing, electrical automation and solid waste recycling waste recycling operation. Each team can be either independent to provide customers with services such aselectrical automation, equipment manufacturing, technology development and other professional services, or jointly provide customers in MSW sorting or recycling industry with complete solutions and whole plant EPC project general contracting services.
Factory and Workshop Pictures
Sucessful Projects
By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities . Our equipment is capable of handling more than 50,000 tons of waste every day.Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste.

Jono Projects All Over the World
6 Key Technology

Artificial Intelligence Sorting	Biological Treatment
Mechanical Shredding	Conveying&Storage
Mechanical Sorting	Mobile Solutioins

7 Solutions

Municipal Solid Waste	Landwill Waste
Organic Waste	Construction Waste
Recyclables	Bulky Waste
Industrial Waste	Decoration Waste

Certifications
Partners and Clinets

Lindner, Austria. Lindner was frormed in 1948. As a specialist in shredding technology in Europe, it is also one of the famous waste shredder manufacturers.

BRT-Harter, Germany. It is the leading company in the field of Mechanical sorting. The sales of Bag-opener takes 60% of the European market share. The sales of ballistic screen is over 500 sets globally, the machines provided by BRT-Hartner are used in more than 1000 countries.

MVT, Italy Founded in 1968, it is a market leader in the bio-drying, compost and in the design, construction and installation of air suction and purification systems which remove dust, fumes, vapours and Volatile Organic Compounds. Now globally over 50 projects have been sucessfully completed.

FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on more than 80 projects, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.
If you have any need ,pls feel free to contact us.

---
