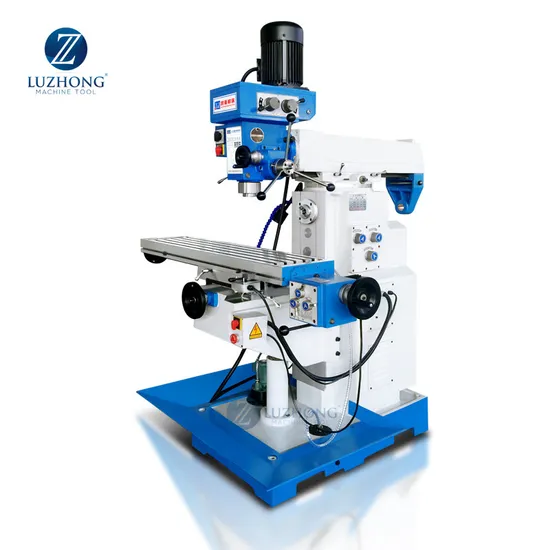

Universal High Quality Mill Drill ZX6350C X axis Auto Feed Drilling and Milling Machine

US$3,400.00
1-4 Sets
US$3,000.00
5+ Sets

Basic Info.

Model NO.
ZX6350C
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal High Quality Mill Drill ZX6350C X axis A
Table Size
1120X280mm
Longitudinal Travel
630mm
Cross Travel
280/240mm
Vertical Travel
430mm
Vertical Milling Capacity
32mm
Face Milling Capacity
100 mm
Drilling Capacity
50mm
Spindle Taper
Mt4
Spindle Motor
1.5/0.85kw
Transport Package
Plywood Case
Specification
1400x1300x2100mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
50 Sets Per Month

Product Description

Universal High Quality Mill Drill ZX6350C X axis Auto Feed Drilling and Milling Machine
Product Description
The main performance characteristics:
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching Product Parameters
Product main technical parameters:
Specifications Units ZX6350C
Table size mm 1120x280
T Slot number/width/pitch mm 5/14/50
Longitudinal travel mm 630
Cross travel mm 280
Vertical travel mm 430
Vertical milling capacity mm 32
Face milling capacity mm 100
Drilling capacity mm 50
Longitudinal feeds range Mm/min 24-720
Cross feeds range Mm/min -
Vertical milling spindle travel mm 120
Spindle nose to table surface mm 140-570
Travel of movable arm mm 360
Vertical milling spindle taper MT4
Horizontal milling spindle taper MT4
Vertical milling spindle speeds R/min 115-1750 ,8 steps
Horizontal milling spindle speeds R/min 32-1320 ,12 steps
Vertical milling motor kw 1.5/0.85
Main motor kw 2.0/2.4
Overall dimensions mm 1400x1300x2100
Net weight Kg 1300
