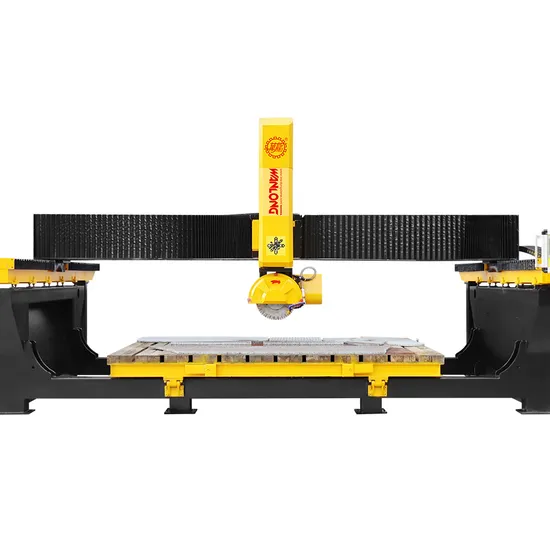

Automatic CNC 4 Axis Bridge Saw Granite Marble Stone Cutting Machine

US$30,000.00-40,000.00 1 set (MOQ)

Basic Info.

Model NO.

WLCNC-500

Usage

Granite, Marble, Sandstone, Basalt

Application

Mineral Industry, Stone Industry

Source Voltage

380V

Automation

Automatic

Cutting Ability

High Speed

Control

Artificial

Certification

API, CCC, SONCAP, GOST, ISO, CE

Max. Saw Blade Quantity

9PCS

Use

Granite, Basalt, Sandstone, Marble Ect.

Max.Diameter of Blade

2200mm

Power(W)

37kw / 45kw / 55kw

Color

Yellow

PLC

Panasonic

Main Motor

Simense

Linear

Taiwan PMI

Relay Brand

FUJI

Transport Package

Crates, Water-Proof Material, Steel Rope

Specification

7500(8500)*4000*6100MM

Trademark

WANLONG

Origin

China

HS Code

8464101000

Production Capacity

20 Sets/Month

Product Description

Automatic cnc 4 axis bridge saw granite marble stone cutting machine price:
The machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use intermational famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal spliter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.

Technicial Parameter

Model		WLCNC-500
diameter of blade	mm	700
Dimension of working platform	mm	3200*200
Power of main motor	kw	18.5
Power of tool slide reciprocating motor	kw	1.5
Power of crossbeam shifting motor	kw	1.5
Power of hydraulic station motor	kw	2.2
Power of elevator motor	kw	2
Overall dimension(LxWxH)	cm	570033003100
Gross weight	kg	5400
Water consumption	m³/h	4
